TAD.Classic 50-4 – Model low loader semitrailer which is well suited for transporting heavy oversized cargo. Drawing on their extensive experience in the field of transportation of oversized cargo, we designed this model to be the most optimal for the transport of various types of oversized cargo. It’s particularly important for transportation companies , who need to perform a variety of orders for oversized loads and difficult to predict what will be the next loading. The trailer has a large cargo area and capacity.

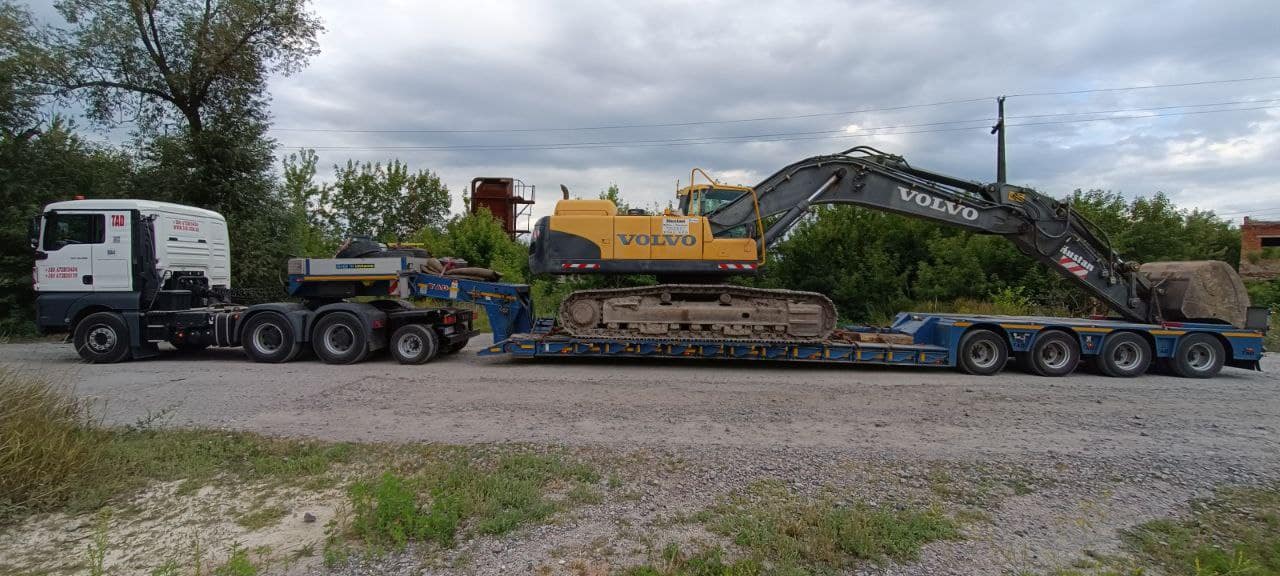

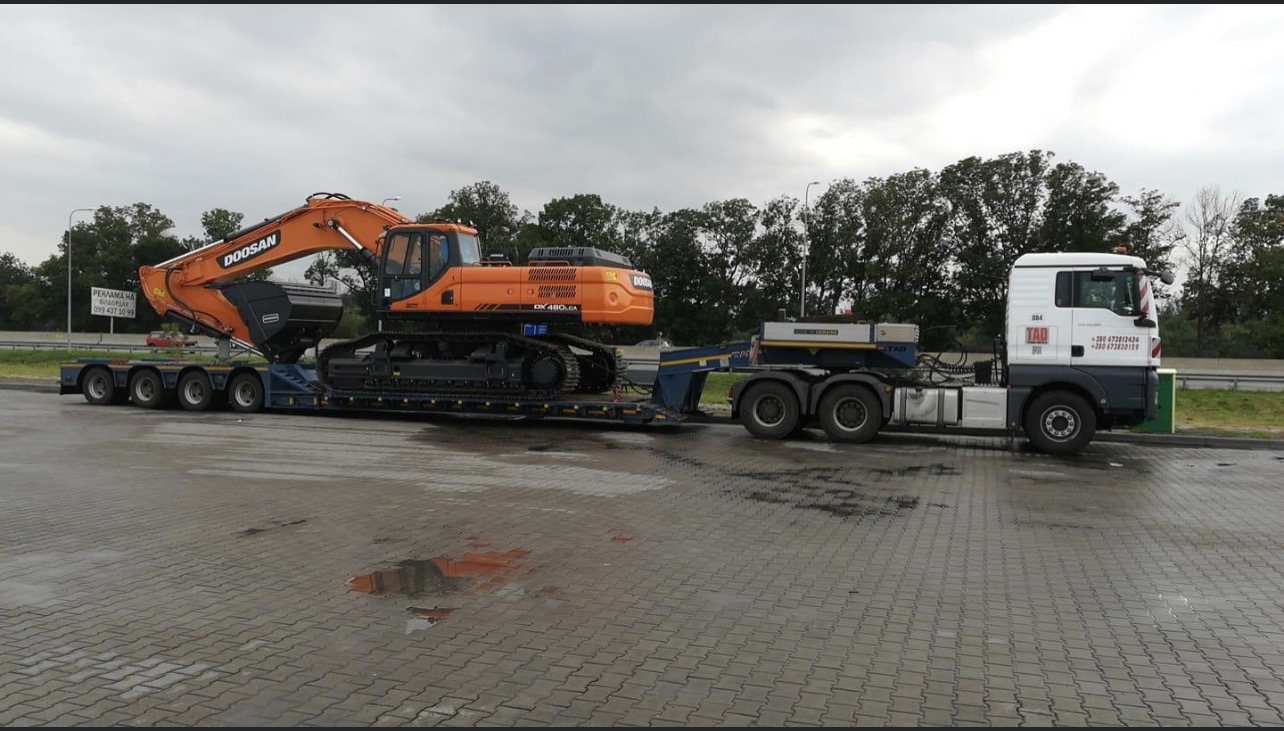

This provides a possibility to carry both heavy-weight 40 tons escavators, as well as properly-sized agricultural combine harvesters, very convenient, because it can carry them with headers to 10 metres in length. Moreover, during empty ride one doesn’t need special permits, as the parameters of the trailer don’t exceed the ones that are allowed in Ukraine. For easy loading trailer is equipped with Detachable front gooseneck. Check valves on the cylinders allow to fix the clearance of the front part of a trawl in position, which is very convenient when crossing uneven sections of the road and driving under bridges. Gooseneck is fitted with comfortable body wit detachable sides. Trailer made of high-strength engineering steel domestic or imported, high resilience and durability standards. Before painting metal processed ABRASIVES, by drobekostruyki, implementing sandblast technique and apply a few layers of paint.

Complete with original components from leading European manufacturers such as WABCO, and JOST. They are also equipped with anchorage points of 8-10 types of classification and 12 tons axle suspension. If needed the trailer can be equipped with telescope. If necessary, the trailer can be fitted with a telescopic extension, We are ready to take into consideration all of your wishes concerning trailer manufacture and technical details. We are ready to consider and take into account your wishes regarding the manufacture of the trailer with the necessary technical features for you.

If you want to buy a trawl with a telescope, trailer or Spetspritsep for transportation of oversized cargo, transportations, we will be happy to answer your questions!!!

Technical features:Description
Dimensions:

• Length – 18200 (21500) мм
• Length of lowered platform – 8700 (2000) мм (equipment with telescopic lengthening bar is possible)
• Width – 2550 mm/ 3500 mm (extension)
• Height – 500 mm

Weight:

• 17 000 kg – dead load
• 50 000 kg – loading capacity

Axles and suspension:

• Pneumatic, strengthened semi-elliptical spring
• axles 9-12 t, front fixed axle, rear understeering axle

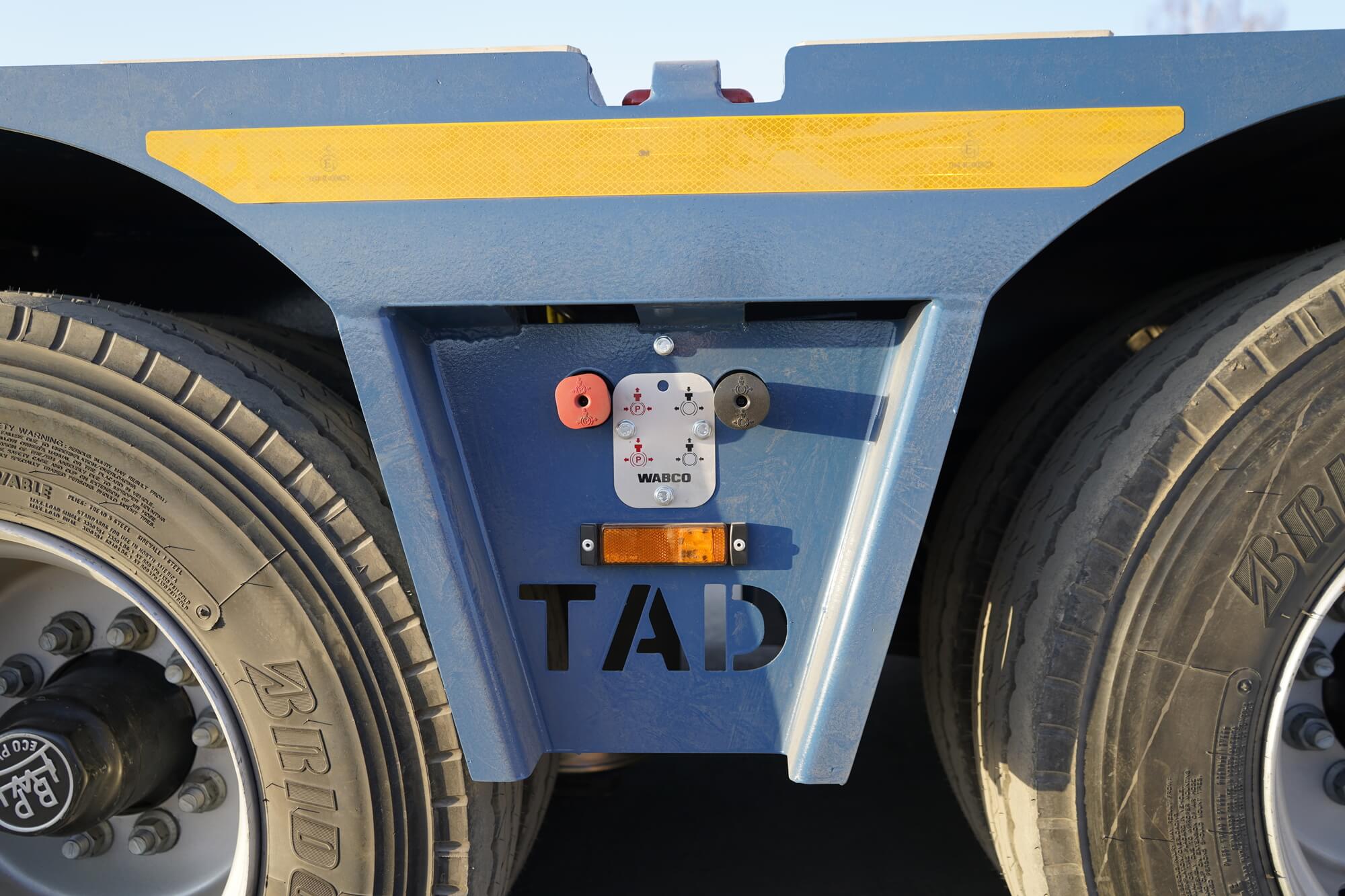

• Braking system of drum type with ABS, manufacturers: WABCO
• Twin tyre R17.5, R 19.5 or standard R 22.5 according to client’s wish

Painting:

• Metal pre-treatment with the method of shot- and sandblasting. Two layers of high-quality grounding and two layers of damage-resistant paint of European manufacturers.

Metal:

• high quality, machine building, import manufacture (Germany), with high features of resilience and durability
• quality control of welds is carried out by magneto-powder method, specialist with appropriate certificate

Basic model is equipped with:

• axles 9t fixed single R 22.5/385/55
• GT and Kormoran tyres
• working “Wide” or “Universal” platform
• gooseneck with hydraulics from tractor unit”
• gooseneck with additional boxes
• high-tensile steel for machine construction

Additional options, not included in standard complete equipment

• Reinforced axles 11-12 t, R19.5 R22.5 R17.5 double or single
• Bodywork with boards on gooseneck
• Gooseneck with autonomous hydraulics
• Lift axles
• Steering or pivoting axles
• Michelin or Bridgestone premium tyres
• Dolly on the 1st or 2nd axle

Guarantee:

• Framework has the guarantee of 3 years or 150km of mileage
• The rest of complete equipment according to the terms of manufacturer

Advantages of the trailer:

• Durable time-proven construction, that endures horrible overload on Ukrainian roads
• Quality original complete equipment from the best manufacturers
• Well-designed trailer construction allows problemless transportations of the majority of cargo presented on the market
• Simplicity, commodity and reliability in use
• If needed our specialist provide service support or consultation
• Recommendation about choosing the best equipment for you, based on our great deal of experience
• Possibility for transportation of combines together with the headers 10m in length
• Price! Our price doesn’t differ a great deal from those analogical European trailers, but our machinery is much more adapted to our domestic operating conditions.
• Quality! Our company is one of the biggest transportation companies of oversized cargo in Ukraine. First of all, we implement our experience in the machinery of our own production. Thanks to that we are always on the move, progressing in changes to the construction of trailers according to the demands of market. We are always working on the quality, practicality and reliability.
Please, feel free to contact us, we will be glad to answer your questions.

Gooseneck equipment
Basic gooseneck
Gooseneck with boxes
Gooseneck with boards and boxes
Aluminum collars with additional compartment
Additional box
Axles
Standard axles
Understeering axles
Compulsory steered axles
Types of detachable goosenecks
Hydraulically detachable gooseneck
Other options
Additional boxes on the rear platform
Metal flooring in the trailer platform
Telescopic lengthening bar
Trolley "DOLLI"
Autonomous hydraulics of gooseneck

To rotate the model, click on the image

Compensation 25%

To receive compensation, you need to have a bank account with a statutory capital of more than 75% owned by the state of Ukraine

Make a trailer payment at the bank

Submit documents to the bank:

  • a copy of the payment order;
  • an act of reception and transmission of equipment;
  • certificate of state registration of equipment;
  • a certificate, confirmed by the State Fiscal Service, about the absence of arrears for more than six months to the state budget, the Pension Fund of Ukraine, funds of compulsory state social insurance;
  • an extract from the Unified State Register of Legal Entities, Individual Entrepreneurs and Public Associations, information that the enterprise is not in the liquidation phase, it has not initiated bankruptcy proceedings, has not been declared bankrupt;
  • consent to the disclosure by the Bank of the Ministry of Agrarian Policy of information on agricultural producers, which is a bank secret or contains personal data (in the form established by the Bank);

Compensation is returned after entering the data in the register of the Ministry of Agrarian Policy during the day.

Buying TAD low loaders is even more profitable!

Price for TAD.Classic 50-4
Price:
on request
Export:
on request

(The price is recommended and can vary)
