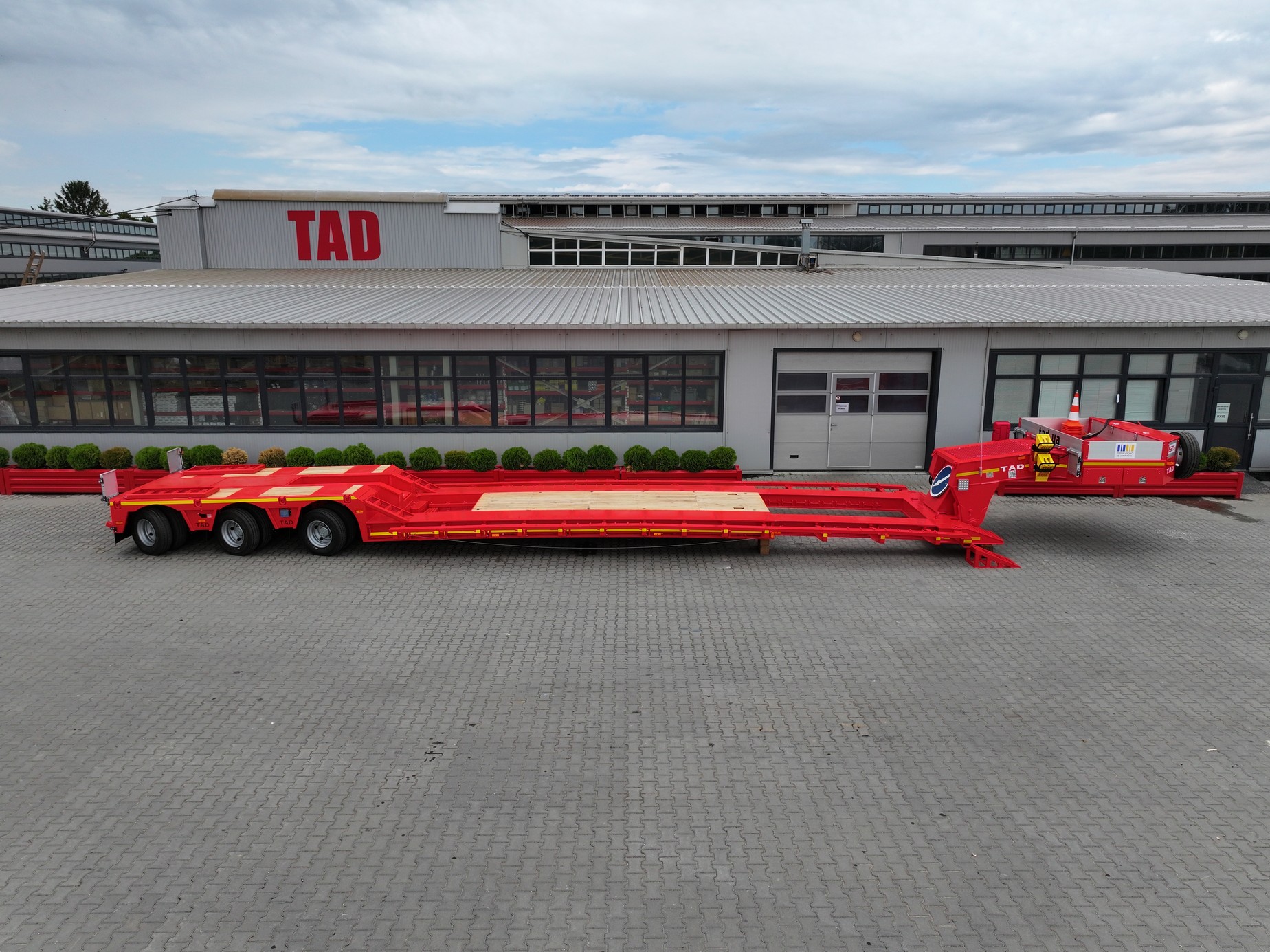

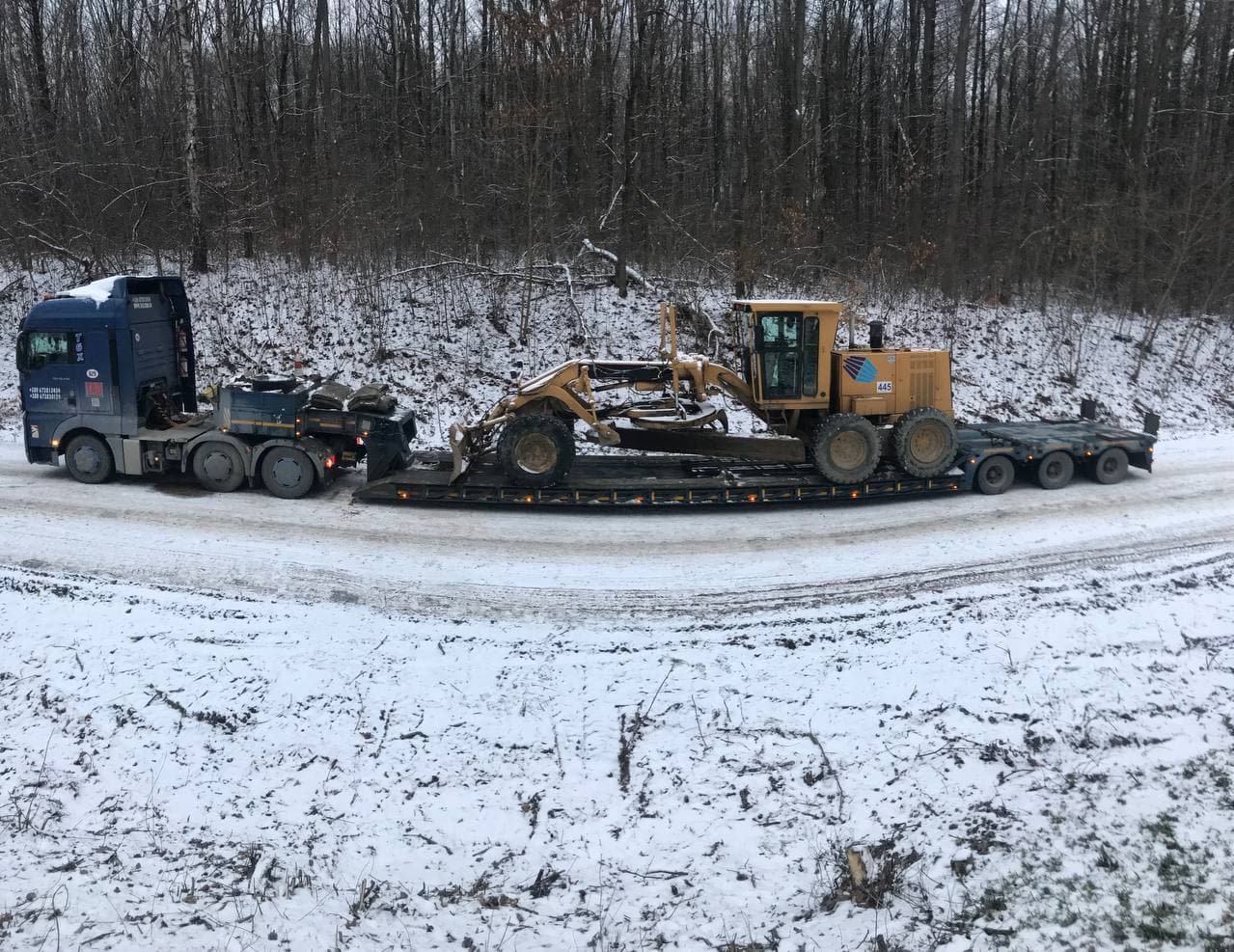

TAD.Classic 40-3 is a model of the low-bed semi-trailer that is perfect for the transportation of average heavy cargo. We have designed this model on the base of many years of our experience as the best choice for the transportation of different kinds of oversized cargo. It is very convenient for transportation companies that carry out a variety of orders when it is difficult to foretell which cargo is going to be transported next. Trailer has a big loading platform and loading capacity. During empty ride there is no need for special permits as the dimensions of the trailer do not exceed the ones allowed in Ukraine, which makes possible the transportation of both 40t excavator as well as normal size agricultural machine.

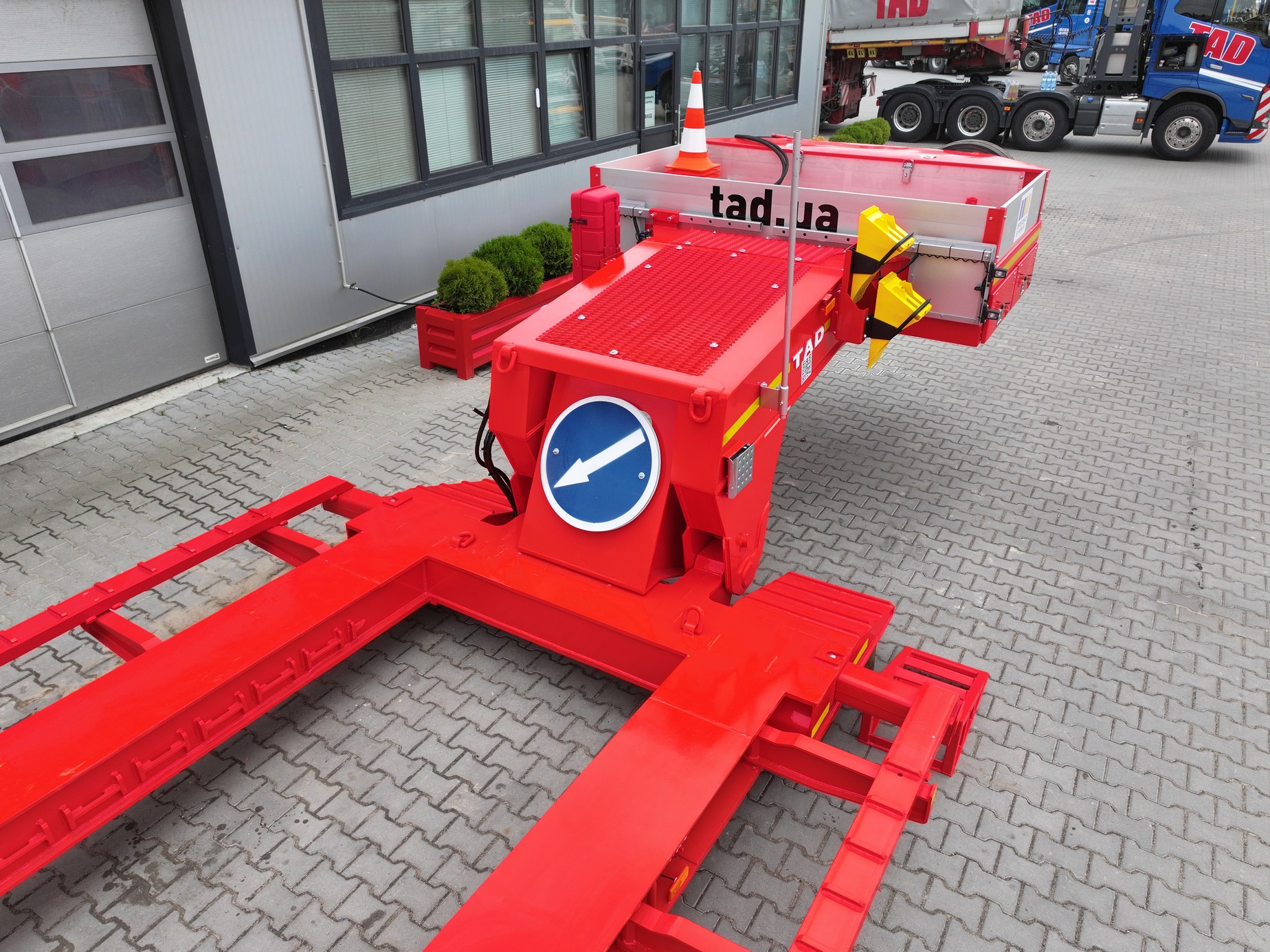

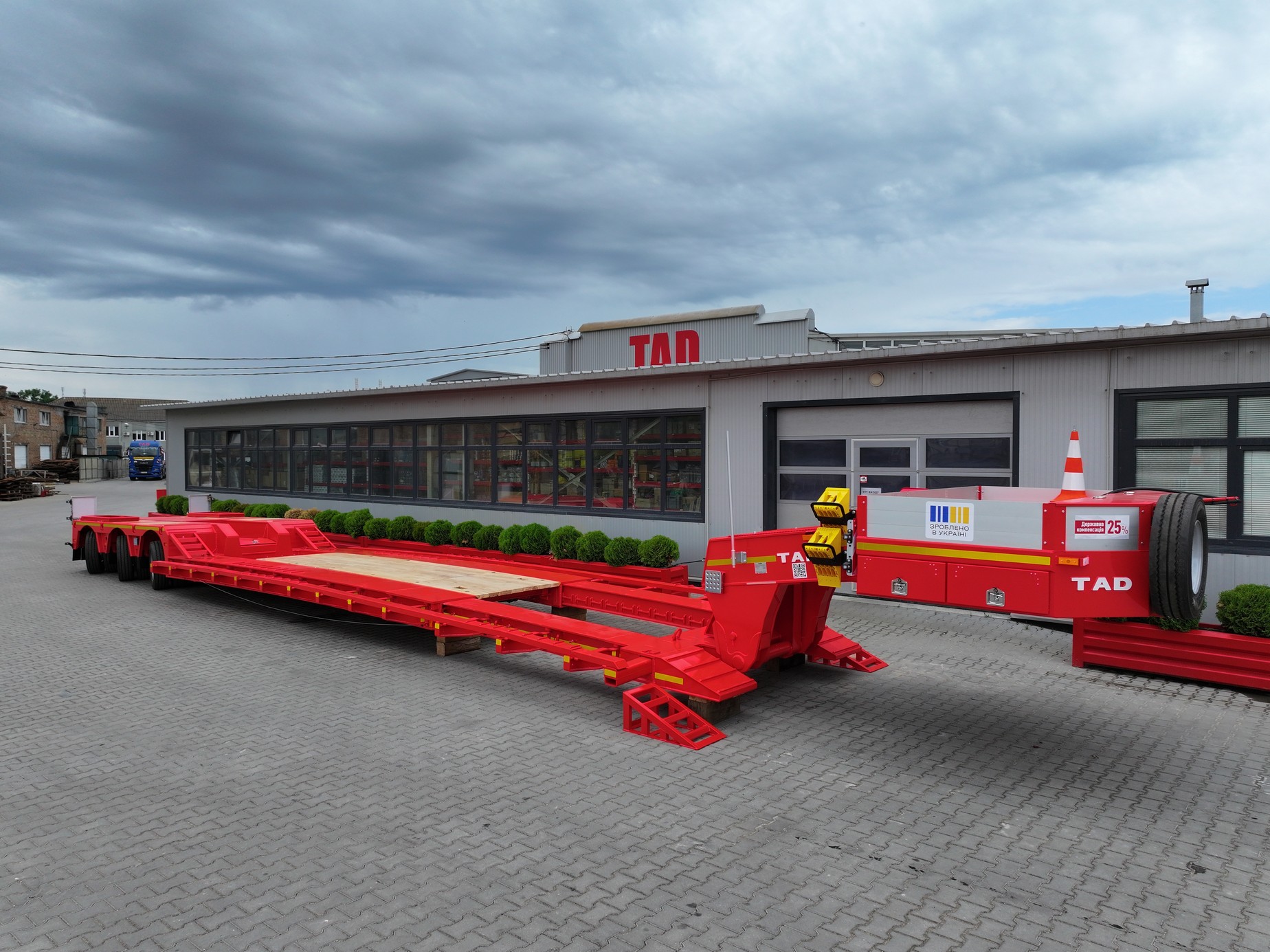

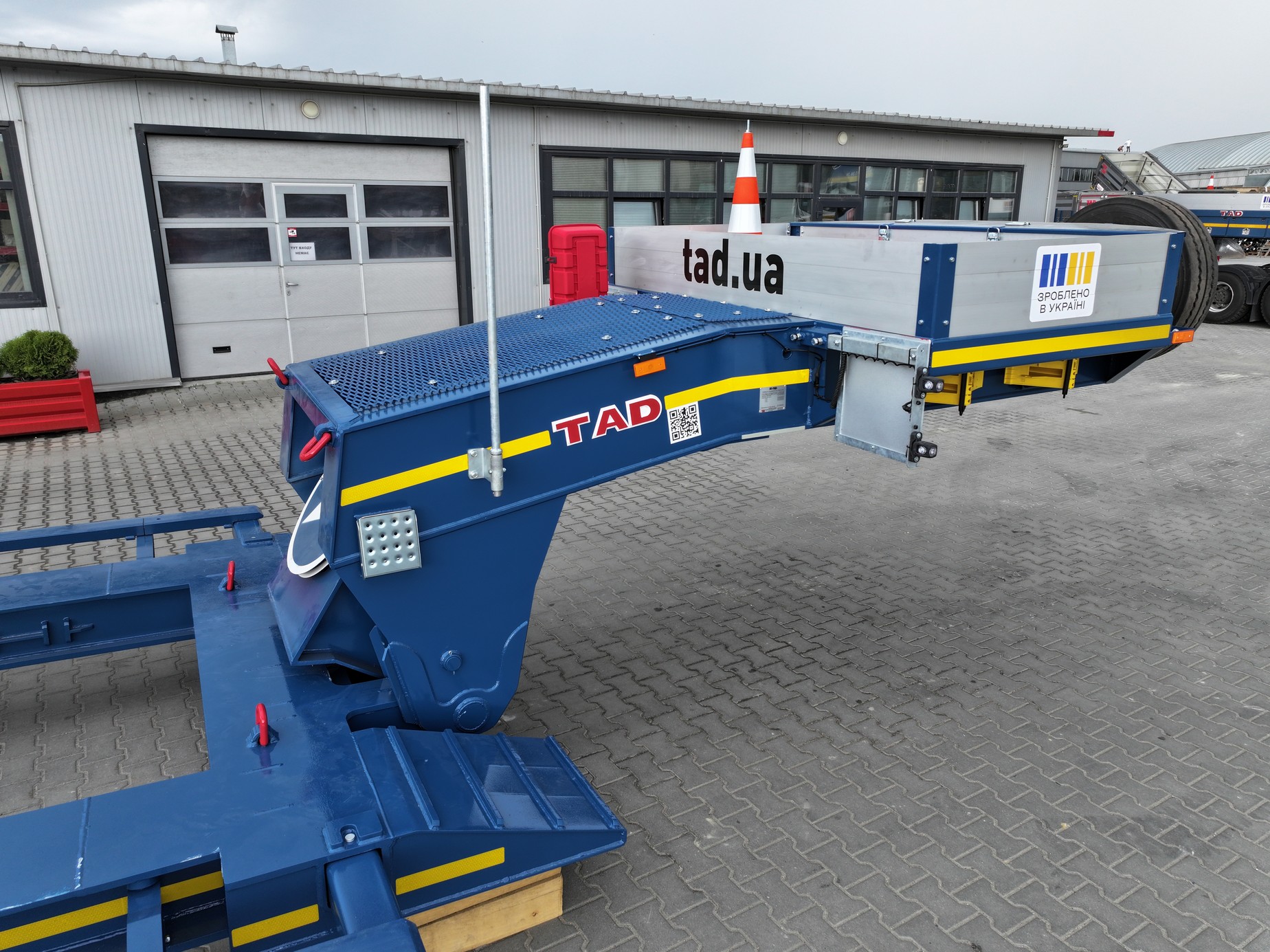

With this trailer you can also transport agricultural machines together with the headers up to 10m. Construction of the trailer allows the process of loading/unloading of the harvester and header be fully autonomous as well as without the use of a crane. The trailer is equipped with detachable gooseneck for convenient loading. Hydrolocks on the cylinders fixate the ground clearance of the front part of trailer in the desired position, which is very convenient during driving on uneven parts of road or underpasses. Gooseneck is also equipped with comfortable body with detachable boards.
Trailer is manufactured from high-tensile steel of international and national production with high resilience and durability. Before painting we process the metal with abrasive materials, applying shot blasting and a few layers of grounding and paint.
The trailer is equipped with the original complete equipment of such European brands as WABCO, HALDEX and JOST. They are also equipped with anchorage points of 8-10 types of classification and reinforced 12 ton axles suspension. If needed the trailer can be equipped with telescope, hydraulic system and steering system for axles. We are ready to take into consideration all of your wishes concerning trailer manufacture and technical details.
Please contact us if you are interested in buying a semitrailer or a special trailer! We’d be glad to answer your questions.

Technical features: Description
Dimensions:

• Length – 18050 m
• Length of lowered platform – 10 000 mm (equipment with telescopic lengthening bar is possible)
• Width – 2550 mm/ 3500 mm (extension)
• Height – 500 mm

Weight:

• 15 000 – dead load
• 35 000 – loading capacity

Axles and suspension:

• Pneumatic, strengthened semi-elliptical spring
• axles 11-12 t, fixed axle, understeering and hydraulic controlled axle (pivoted)
• Braking system of drum type with ABS, manufacturers: WABCO
• Twin tyre R17.5, R 19.5 or standard R 22.5 according to client’s wish

Painting:

• Metal pre-treatment with the method of shot- and sandblasting. Two layers of high-quality grounding and two layers of damage-resistant paint of European manufacturers.

Metal:

• high quality, machine building, import manufacture (Germany), with high features of resilience and durability.

Basic model is equipped with:

• 9t single fixed axle R22.5/385/55
• Tyre brand – GT, Kormoran
• Working platform of “wide” type
• Gooseneck with hydraulics “from the tractor unit”
• Gooseneck with additional boxes
• High-tensile steel for machine construction

Additional options, not included in standard complete equipment

• Strengthened axles 9-12t, R 19.5, R 22.5, R 17.5, coupling or single axle
• Gooseneck body with board sides
• Gooseneck with autonomic hydraulics
• Extension of the rear platform
• Lifting axles
• Pivoting axles
• Premium Michelin or Bridgestone types

Guarantee:

• Framework has the guarantee of 3 years or 150km of mileage
• The rest of complete equipment according to the terms of manufacturer

Advantages of the trailer:

• Durable time-proven construction, that endures horrible overload on Ukrainian roads
• Quality original complete equipment from the best manufacturers
• Well-designed trailer construction allows problemless transportations of the majority of cargo presented on the market
• Simplicity, commodity and reliability in use
• If needed our specialist provide service support or consultation
• Recommendation about choosing the best equipment for you, based on our great deal of experience
• Possibility for transportation of combines together with the headers 10m in length
• Price! Our price doesn’t differ a great deal from those analogical European trailers, but our machinery is much more adapted to our domestic operating conditions.
• Quality! Our company is one of the biggest transportation companies of oversized cargo in Ukraine. First of all, we implement our experience in the machinery of our own production. Thanks to that we are always on the move, progressing in changes to the construction of trailers according to the demands of market. We are always working on the quality, practicality and reliability.
Please, feel free to contact us, we will be glad to answer your questions.

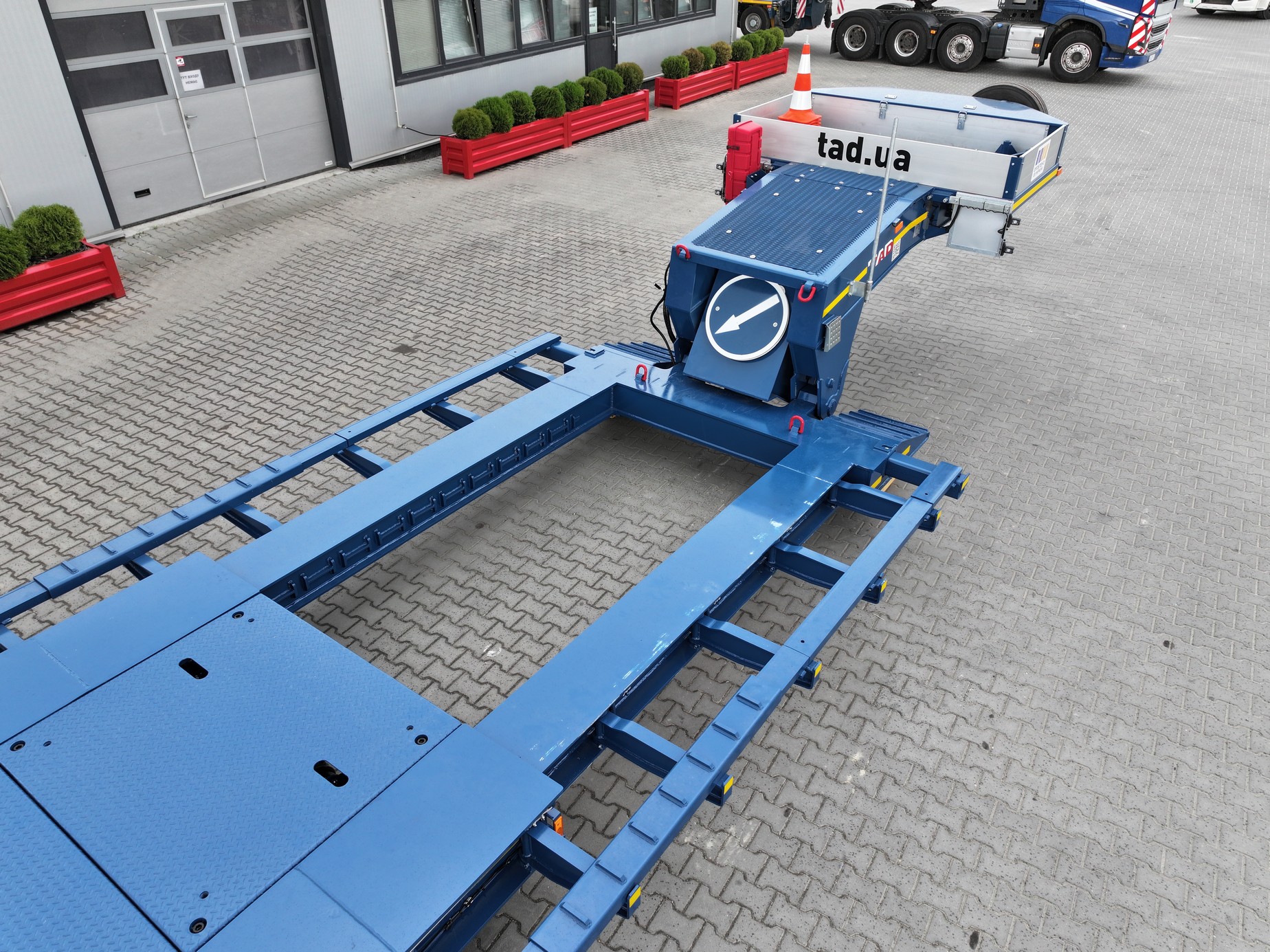

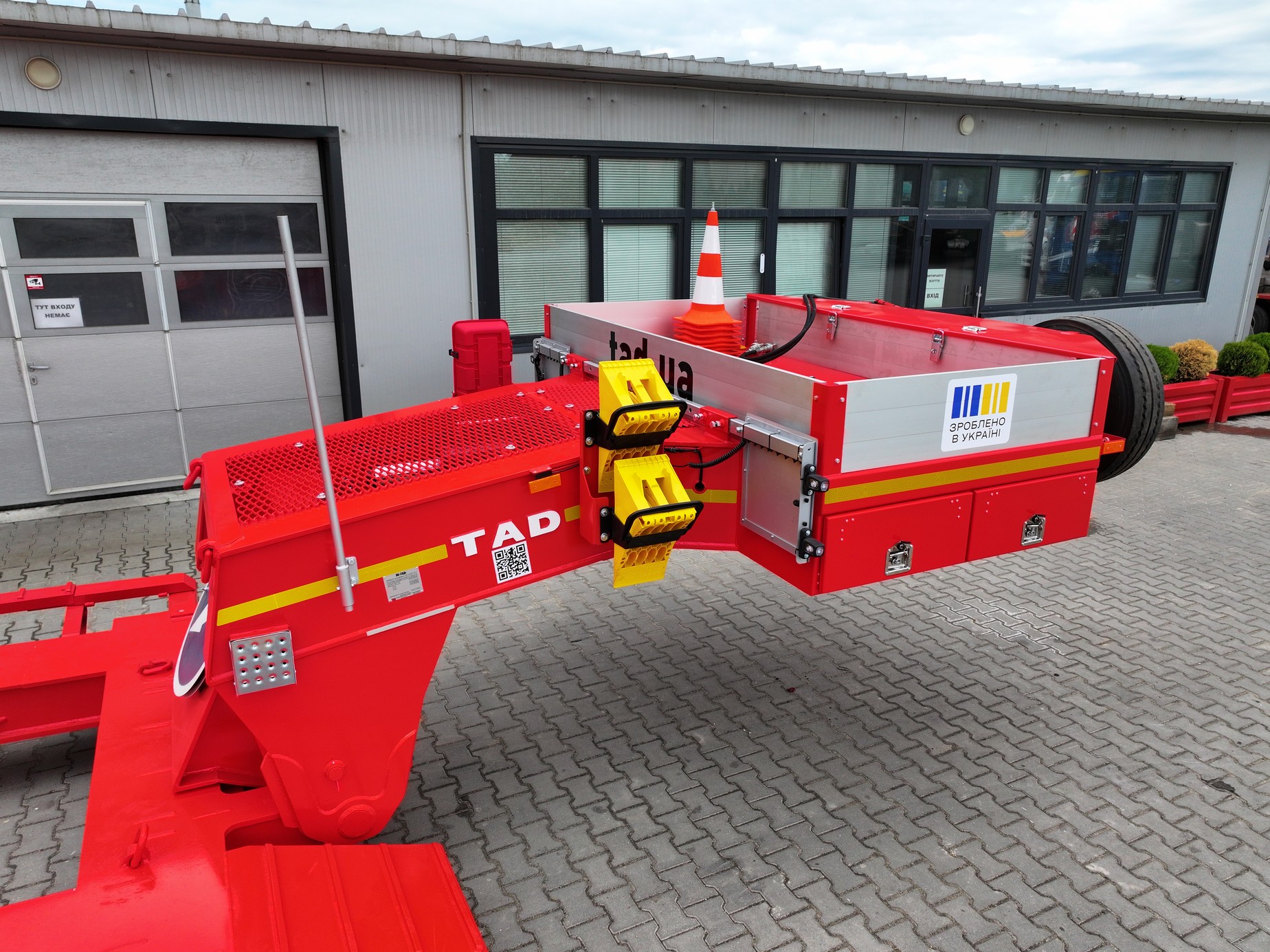

Gooseneck equipment
Basic gooseneck
Gooseneck with boxes
Gooseneck with boards and boxes
Aluminum collars with additional compartment
Additional box
Axles
Standard axles
Understeering axles
Compulsory steered axles
Other options
Additional boxes on the rear platform
Autonomous hydraulics of gooseneck
Telescopic lengthening bar
Extension ladders in the rear balcony
Metal flooring in the trailer platform

To rotate the model, click on the image

Compensation 25%

To receive compensation, you need to have a bank account with a statutory capital of more than 75% owned by the state of Ukraine

Make a trailer payment at the bank

Submit documents to the bank:

– a copy of the payment order;
– an act of reception and transmission of equipment;
– certificate of state registration of equipment;
– a certificate, confirmed by the State Fiscal Service, about the absence of arrears for more than six months to the state budget, the Pension Fund of Ukraine, funds of compulsory state social insurance;

– an extract from the Unified State Register of Legal Entities, Individual Entrepreneurs and Public Associations, information that the enterprise is not in the liquidation phase, it has not initiated bankruptcy proceedings, has not been declared bankrupt;

– consent to the disclosure by the Bank of the Ministry of Agrarian Policy of information on agricultural producers, which is a bank secret or contains personal data (in the form established by the Bank);

Compensation is returned after entering the data in the register of the Ministry of Agrarian Policy during the day.

Buying TAD low loaders is even more profitable!

Price for TAD.Classic 40-3
Price:
66 021 EURO (VAT included)
Export:
60 739 EURO

(The price is recommended and can vary)

Basic type is equipped with::

  • axles 12t, R22,5/385/55
  • hydraulics from the trailer
  • stainless steel engineering domestic or imported, high resilience and durability standards

Options (the price is recommended and can vary):

  • body on the front platform
  • telescopic extension of the lower platform
  • autonomous hydraulics, Honda engine
  • autonomous hydraulics with electrical starter
  • lifting axle
  • premium tyres
  • additional box on gooseneck
  • individual color the customer
