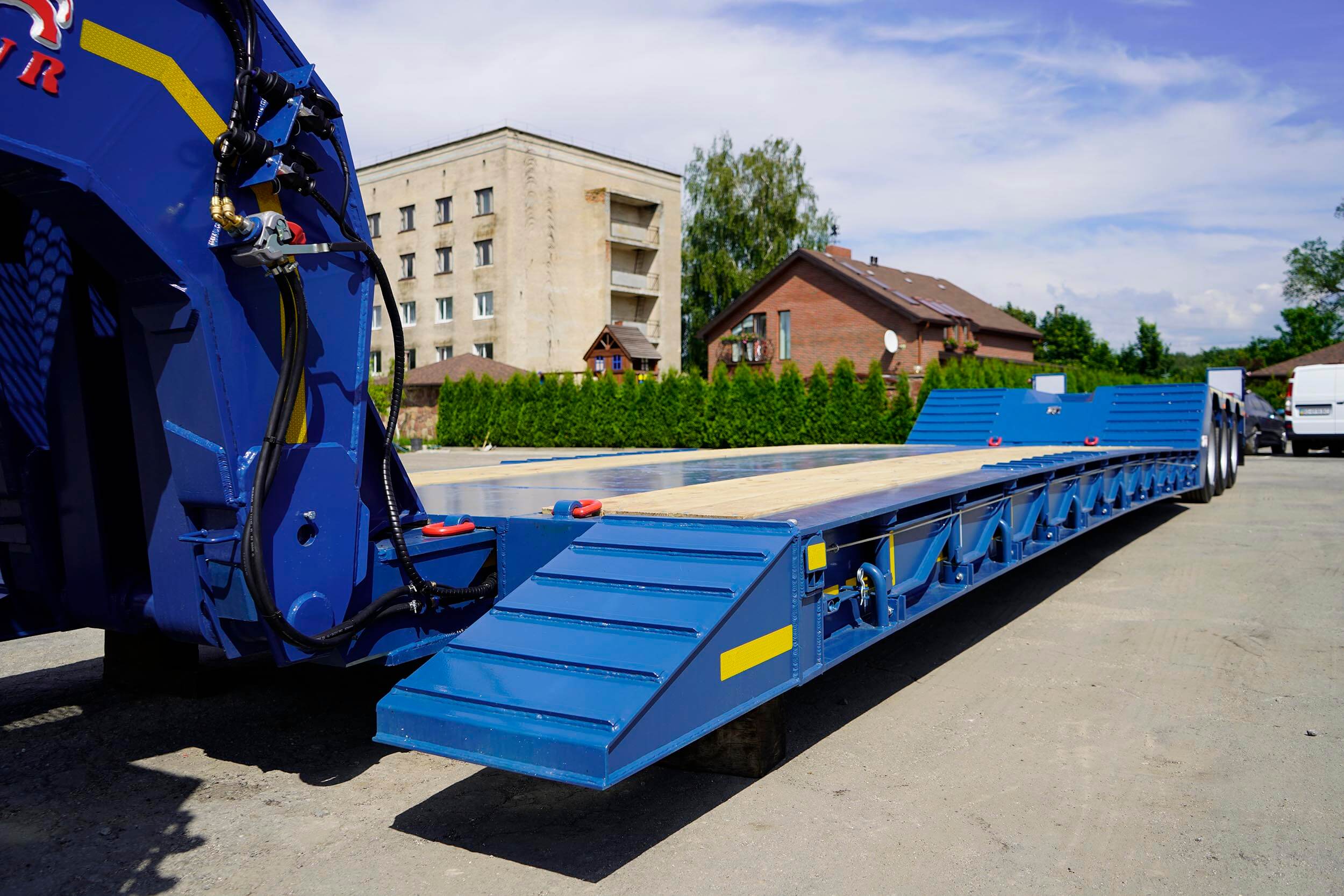

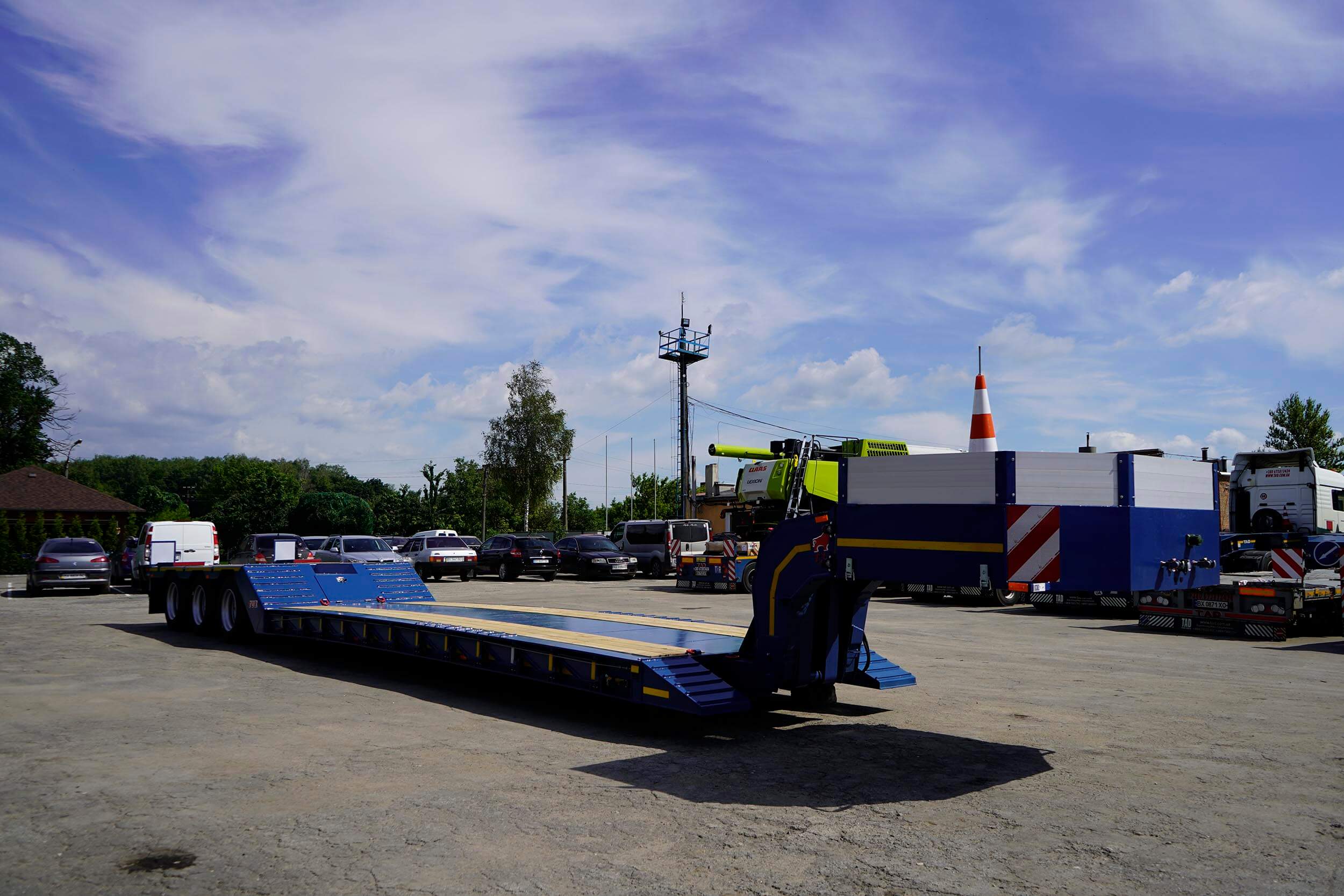

TUR 40-3 is a low-frame semi-trailer model that is well suited for transporting medium and heavy oversized cargo. Based on our own many years of experience in the field of oversized cargo, we have designed this model as the most optimal for the transportation of various types of oversized cargo. This is especially important for transport companies, which need to fulfill a variety of orders for oversized freight and it is difficult to predict which load will be next. The trailer has a large loading platform and load capacity. When driving empty, no special permits are required, as the dimensions of the trawl do not exceed the parameters allowed in Ukraine. This allows him to carry both heavy forty-ton excavators and large agricultural machines.

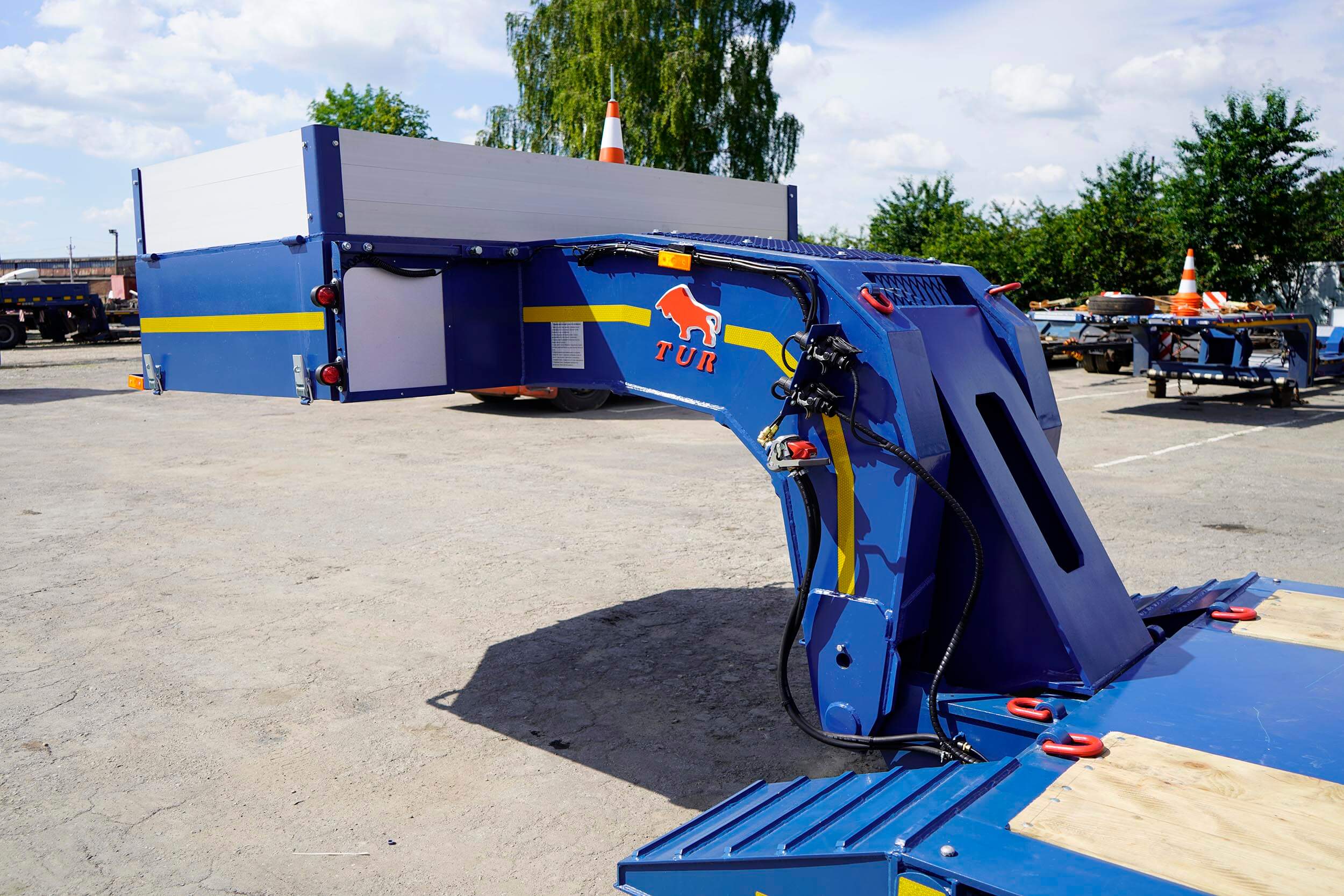

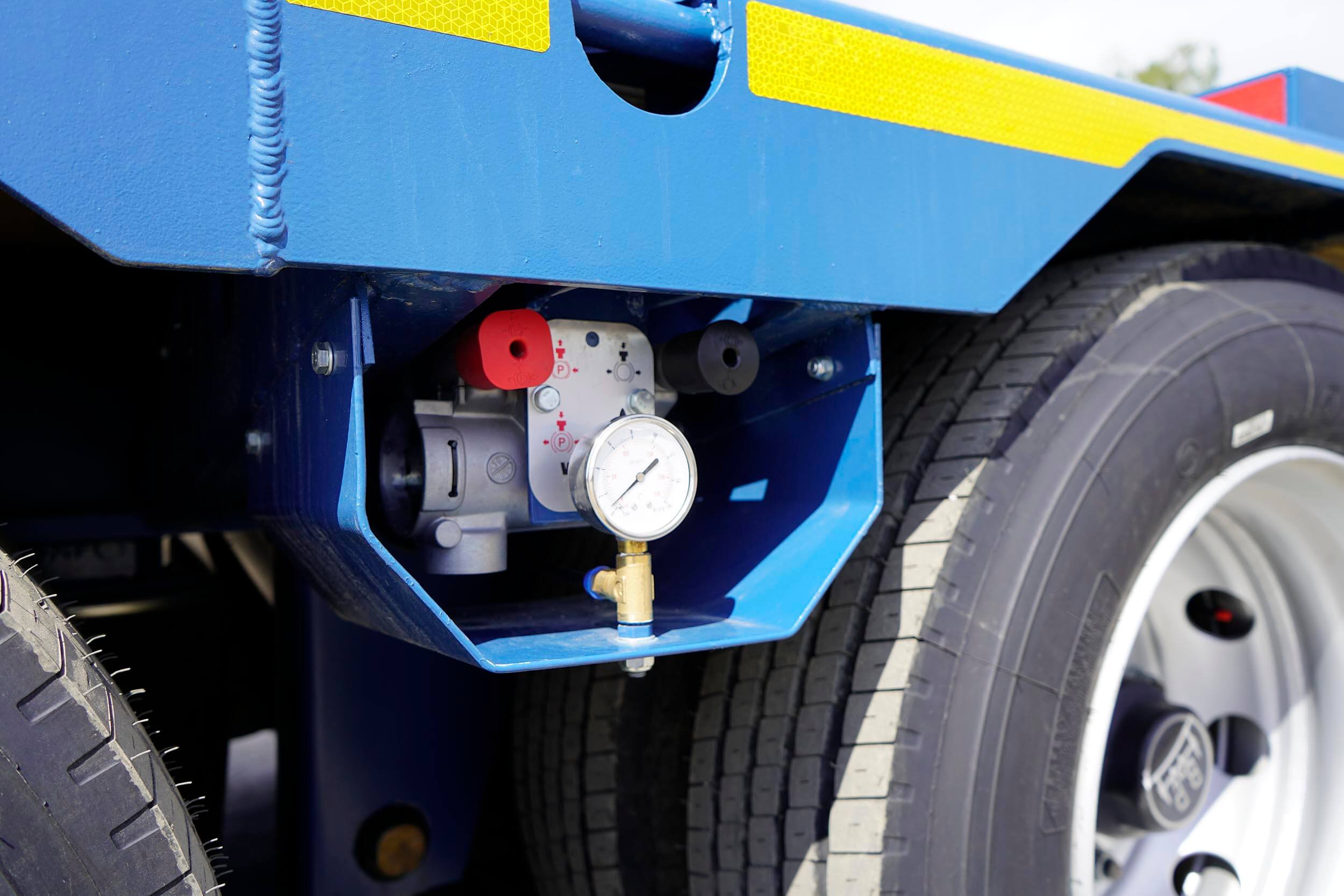

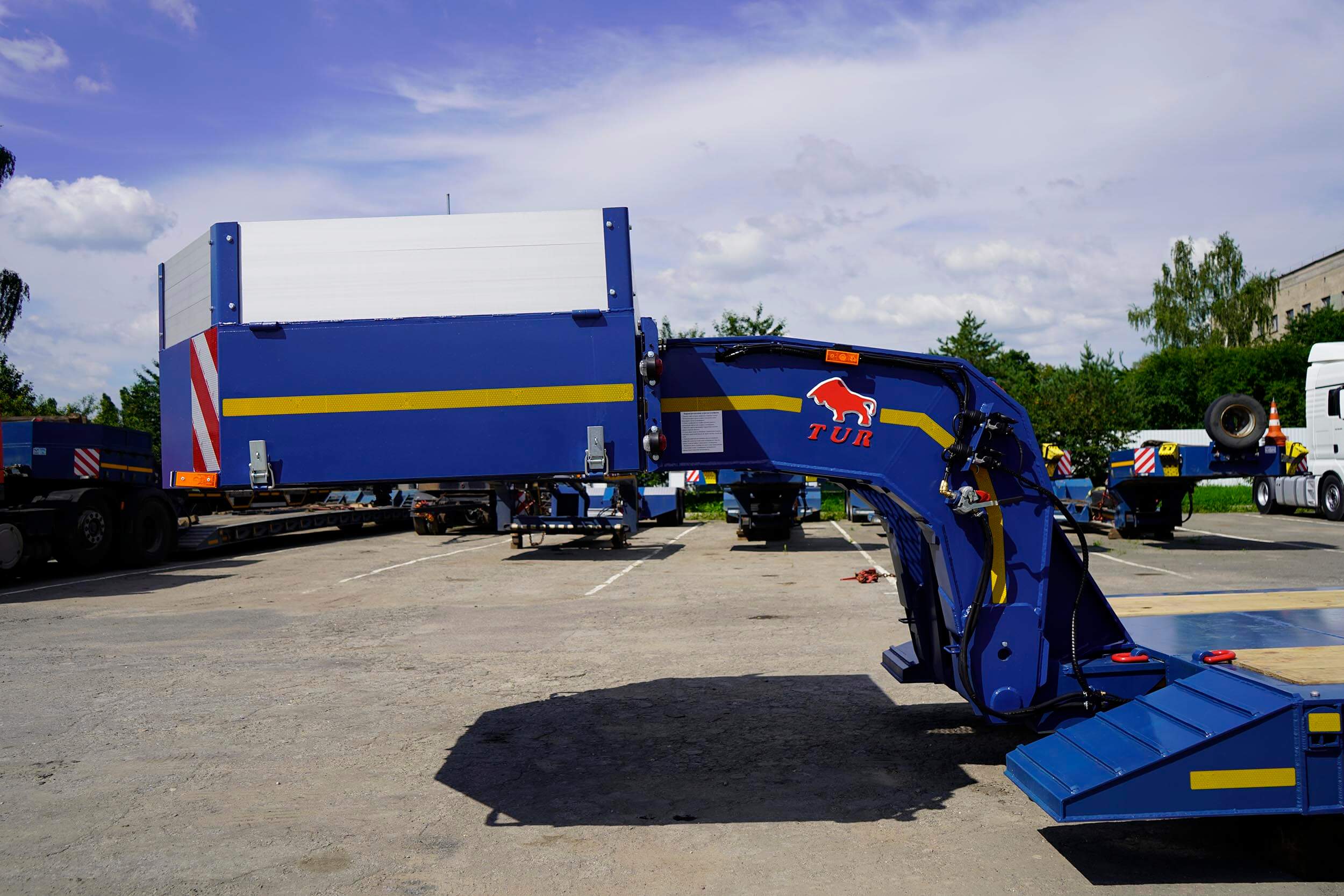

For transportation of the last it, by the way, is very convenient as can transport them together with reapers to 10 m. The design of a trawl gives the chance to load and unload the combine and the reaper completely independently, without use of cranes. For easy loading, the trailer is equipped with a detachable front collar. Hydraulic locks on the cylinders allow you to fix the ground clearance of the trawl in the right position, which is very convenient when crossing uneven sections of road and driveway under bridges. The goose is also equipped with a comfortable body with removable sides. The trailer is made of high-strength machine-building steel of domestic or import production, with high parameters of elasticity and durability. Before painting, the metal is treated with abrasive materials, the method of shot blasting, and then applied several layers of quality primer and paint.

Equipped with original components from leading European manufacturers such as WABCO, JOST. It is equipped with fastening points of the 8-10th class of durability. The suspension consists of specially reinforced 12-ton axles. If necessary, the trailer can be equipped with telescopic extension, hydraulic and forced axle rotation systems. We are ready to consider and take into account your wishes regarding the manufacture of a trailer with the necessary technical features.

If you want to buy a trawl semi-trailer or special trailer for oversized cargo, please contact us, we will be happy to answer your questions !!!

SpecificationsDescription
Dimensions:

• total length 18050 mm
• length of the lowered platform 10000 mm (the telescopic extension is possible)
• width 2550 mm / 3500 mm (expansion)
• coupling height 1250 mm

Weight:

• 15000 kg net weight
• 40,000 kg load capacity

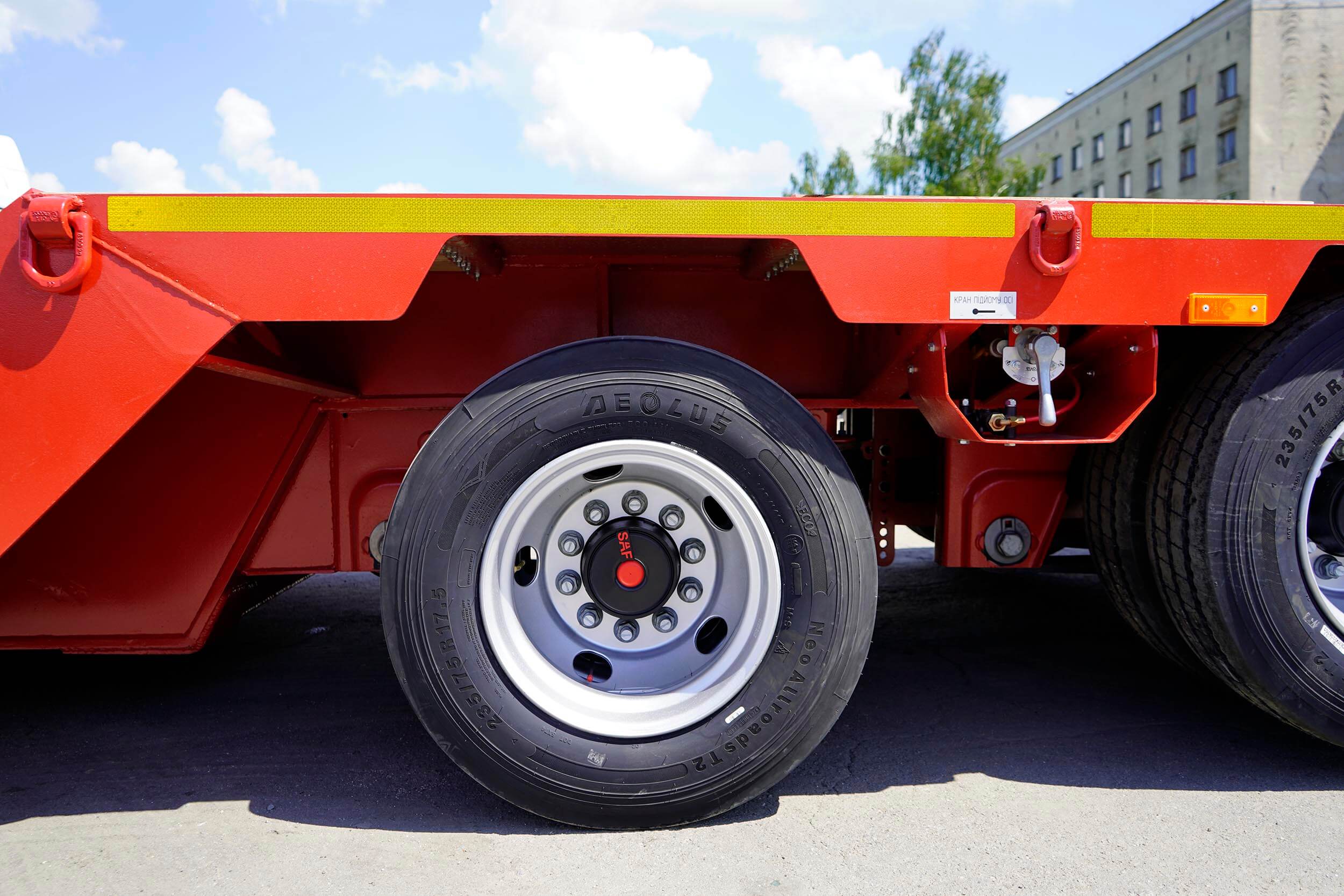

Axles and suspension:

• pneumatic, the half-spring is strengthened
• axles Mustafa Ceylan 12 t
• drum brake system, disc type with ABS, manufacturer WABCO
• paired tires R17.5, R19.5 or ordinary R22.5 at the customer’s choice

Dyeing:

• preliminary cleaning of metal by shot blasting, sandblasting. Two layers of high-quality soil and two layers of damage-resistant paint from European manufacturers

Metal:

• high-quality machine-building steel S690, S350 of domestic or import production, with high parameters of elasticity and durability
• quality control of welds is carried out by the magnetic powder method, a specialist with the appropriate certificate

The basic model is completed:

• axles of 9 t stationary single 235/75 R17.5
• Aeolus tires
• wood flooring platform
• high-strength machine-building steel

Additional options are not included in the basic set:

• axes SAF, BPW
• inertial steering axles SAF, BPW
• lifting axis
• front arrival, hydraulic way of disconnection with the drive from the car
• metal platform decking
• autonomous hydraulics from the electric pump or the HONDA engine
• extended front buttonhole with sides and drawers
• extension of the rear balcony

Guarantee:

• a 3-year warranty or 150 tons of mileage is provided for the frame structure
• to other components according to obligations of manufacturers

THE ADVANTAGES OF OUR TRAILER

• strong time-tested construction that can withstand terrible congestion of bad Ukrainian roads
• high-quality original components from the best manufacturers
• well-designed trailer design that allows you to easily transport most of the goods offered by the market
• simplicity, convenience and reliability in operation
• if necessary, service support and advice from our specialists
• recommendation of the most optimal equipment for YOU based on our extensive experience in oversized transportation
• possibility of transportation of combines with reapers of 10 m
• COST !!! note that it is much lower than the cost of similar European trailers. Although our equipment is more adapted to domestic operating conditions.
• QUALITY !!! our company is one of the largest carriers of oversize in Ukraine and all our practical experience we first of all embody in equipment of our production. As a result, we never stay put, but are constantly improving, making the necessary changes to the design of trailers, as required by the market, as well as improving their quality, practicality and reliability.

Contact us, we will be happy to answer your questions.

Compensation 25%

To receive compensation, you need to have a bank account with a statutory capital of more than 75% owned by the state of Ukraine

Make a trailer payment at the bank

Submit documents to the bank:

  • a copy of the payment order;
  • an act of reception and transmission of equipment;
  • certificate of state registration of equipment;
  • a certificate, confirmed by the State Fiscal Service, about the absence of arrears for more than six months to the state budget, the Pension Fund of Ukraine, funds of compulsory state social insurance;
  • an extract from the Unified State Register of Legal Entities, Individual Entrepreneurs and Public Associations, information that the enterprise is not in the liquidation phase, it has not initiated bankruptcy proceedings, has not been declared bankrupt;
  • consent to the disclosure by the Bank of the Ministry of Agrarian Policy of information on agricultural producers, which is a bank secret or contains personal data (in the form established by the Bank);

Compensation is returned after entering the data in the register of the Ministry of Agrarian Policy during the day.

Buying TAD low loaders is even more profitable!

Price TUR 40-3
Cost :
71794 EURO with VAT
