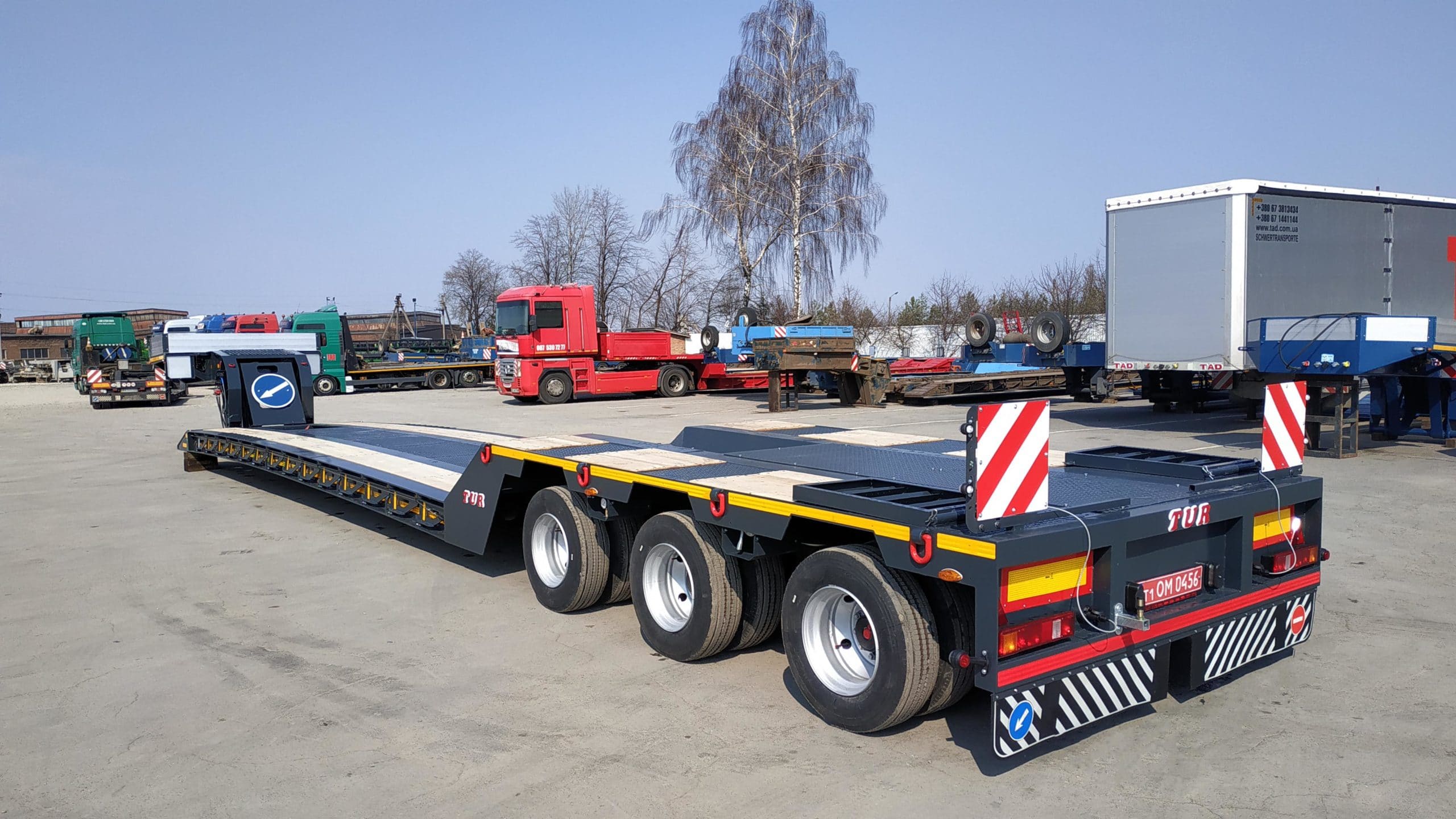

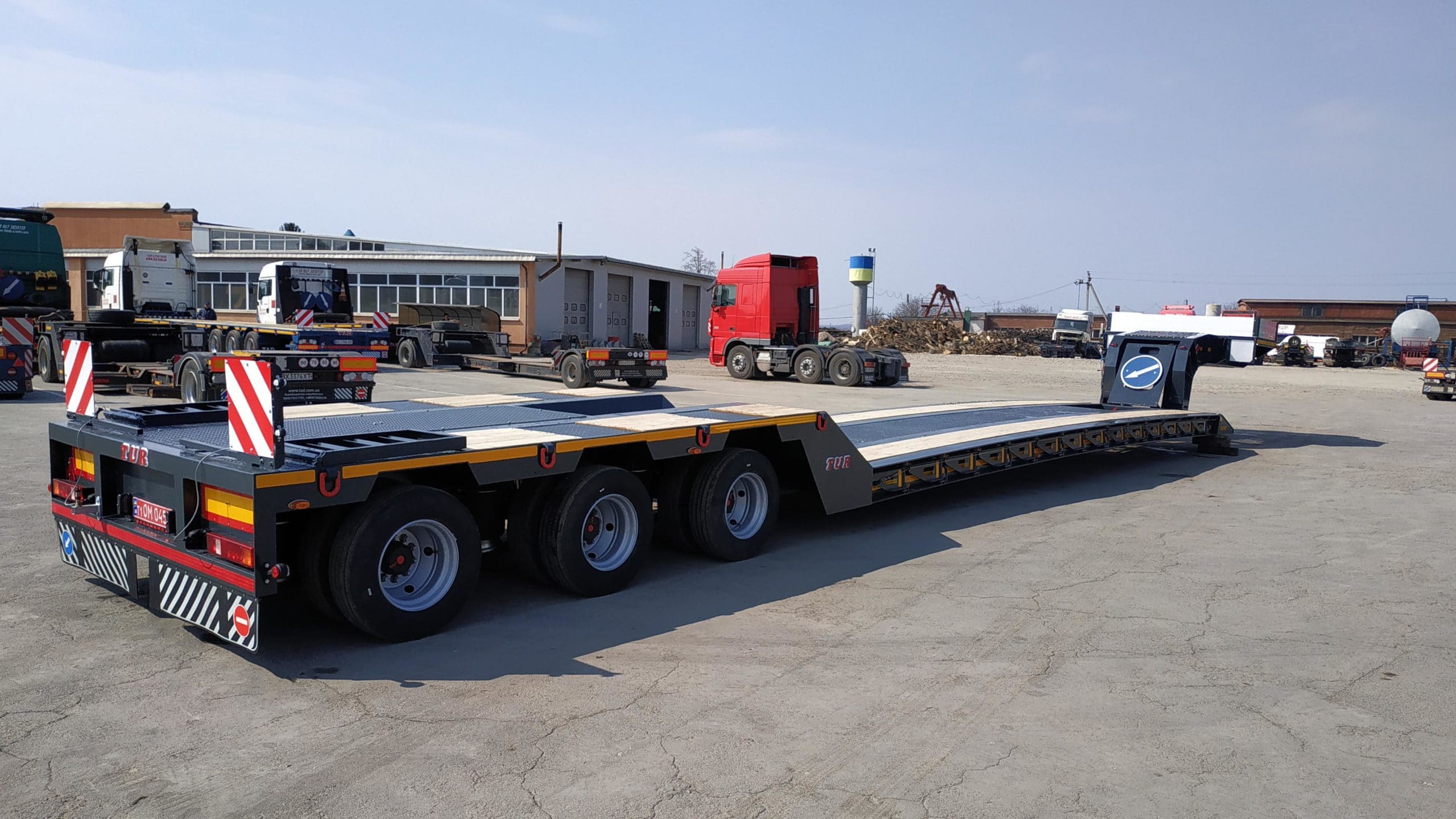

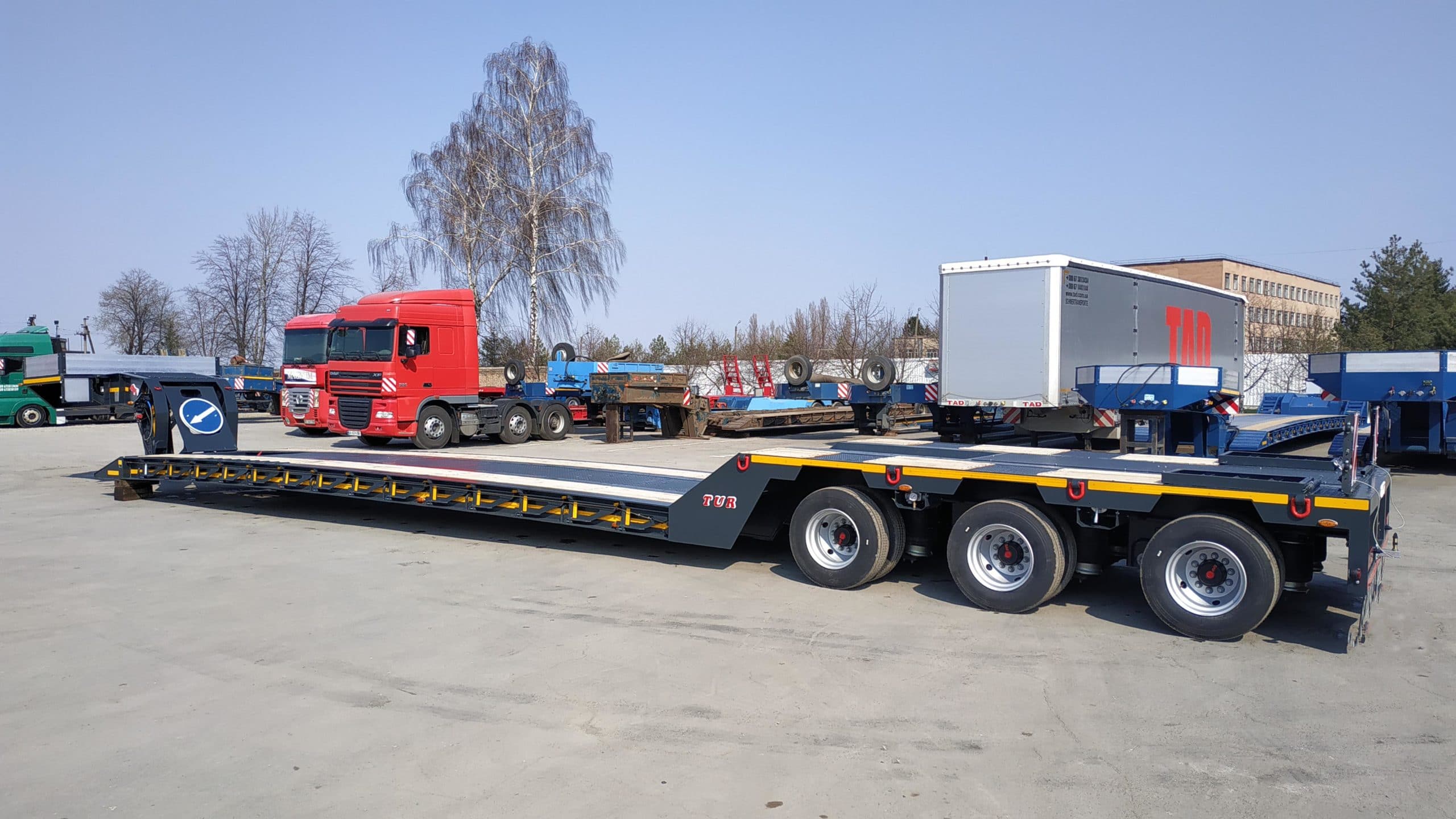

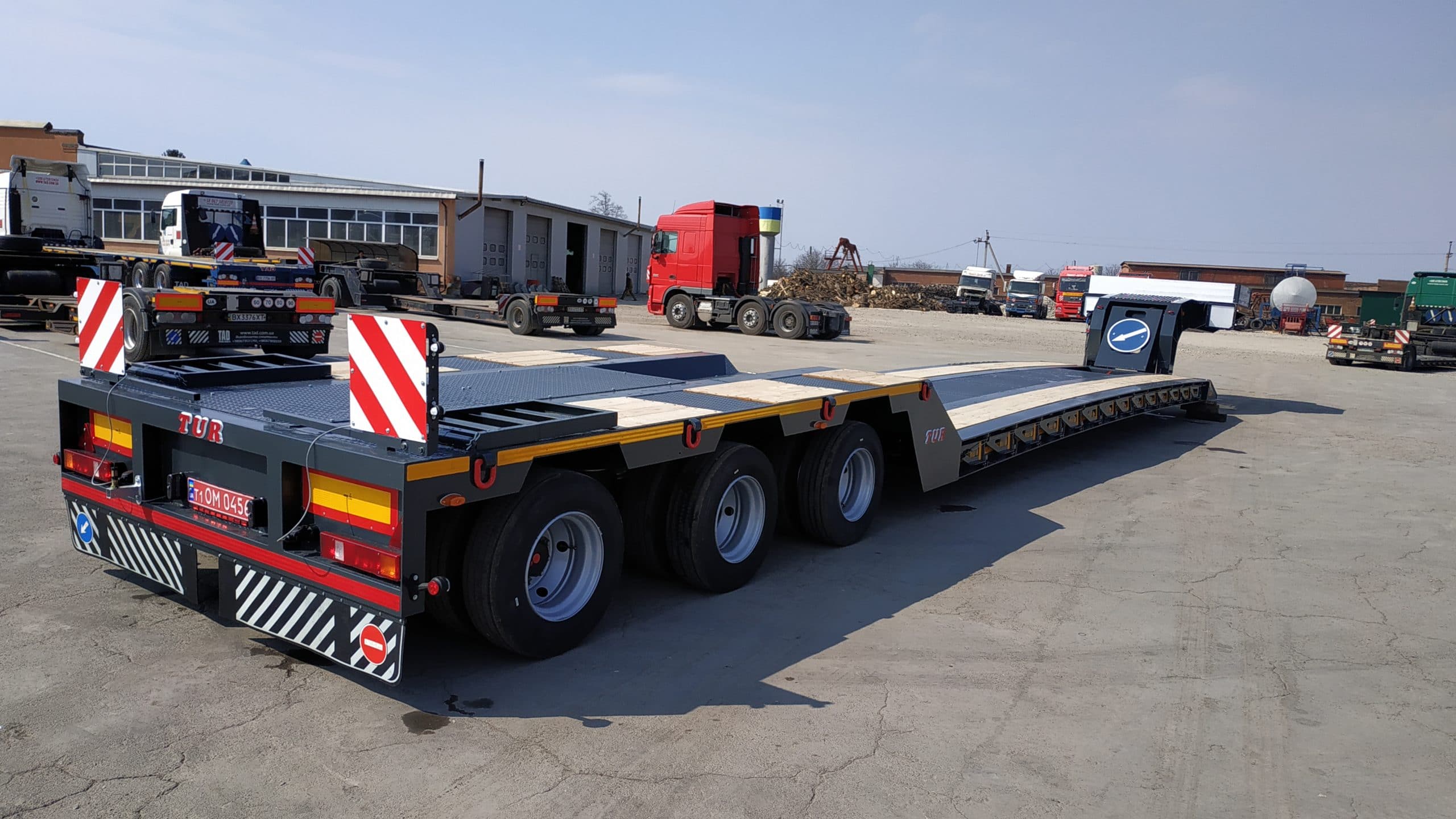

Low loader semi-trailer TAD TUR 30-3

QUALITY & RELIABILITY
LEARN MORE
QUALITY & RELIABILITY
LEARN MORE
  • Description
  • Technical characteristics
  • Photo Gallery
  • Video Gallery
  • In action
  • Options
  • View 360 °
  • Financing
  • Compensation 25%
  • Price

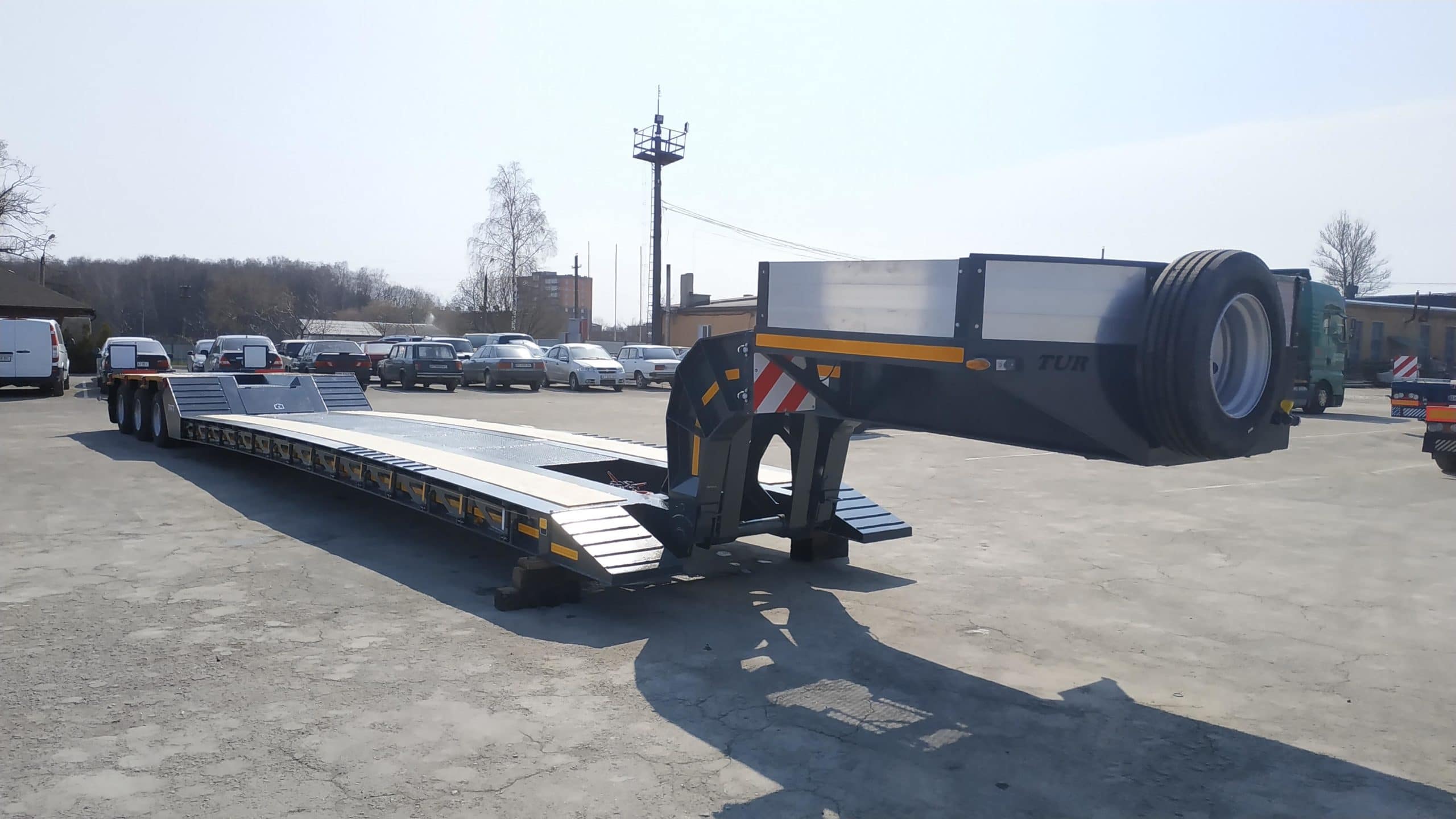

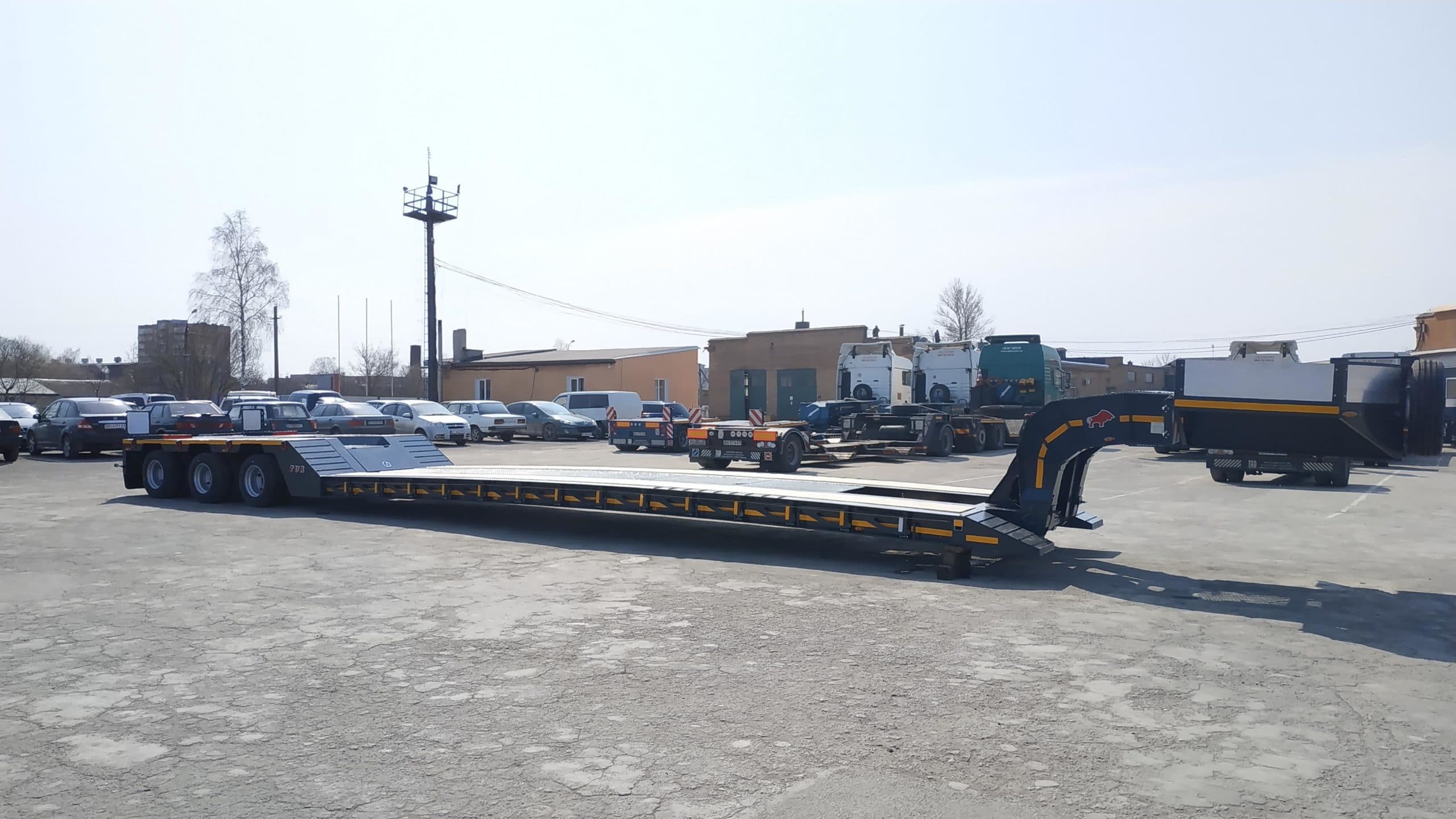

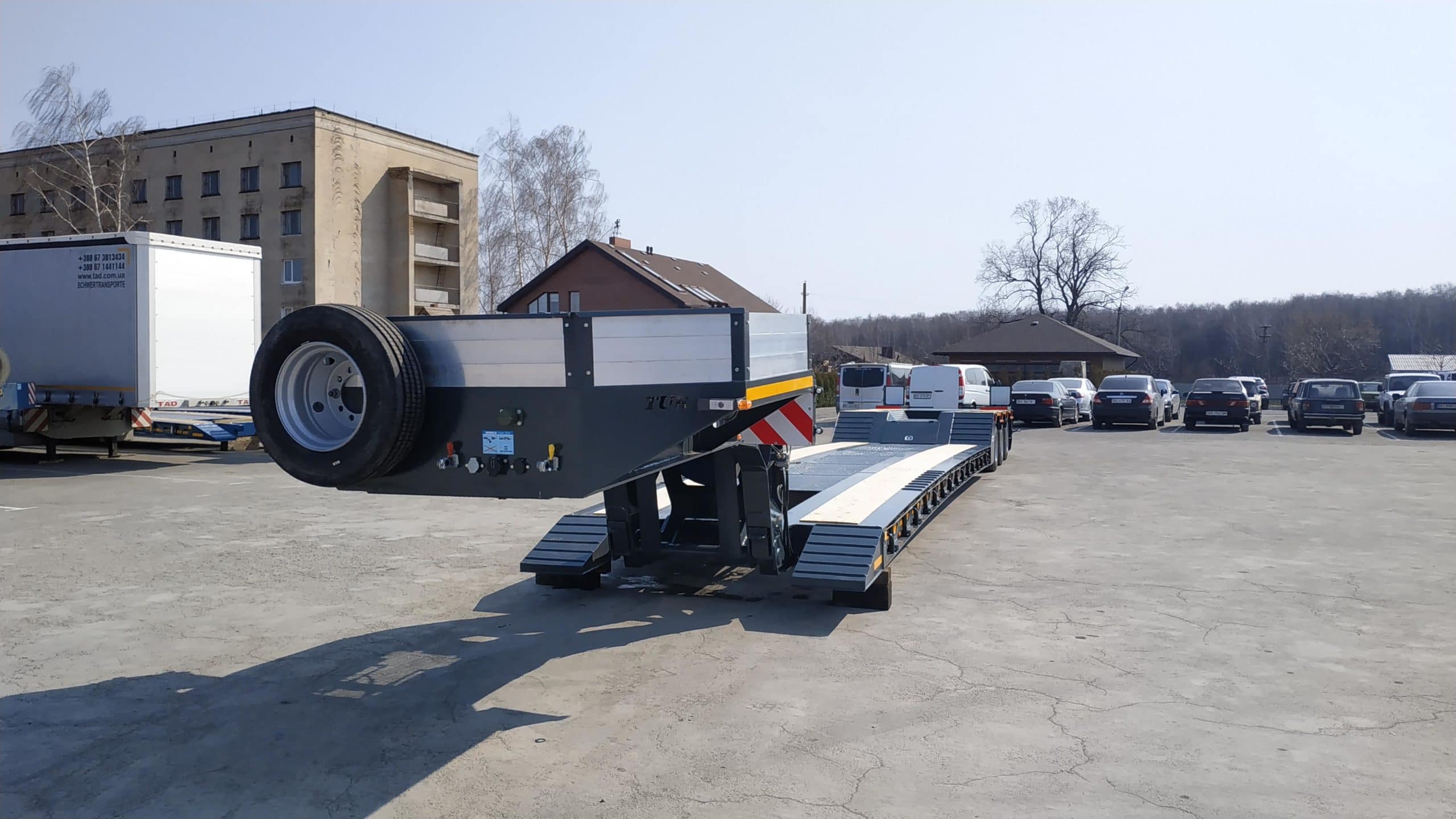

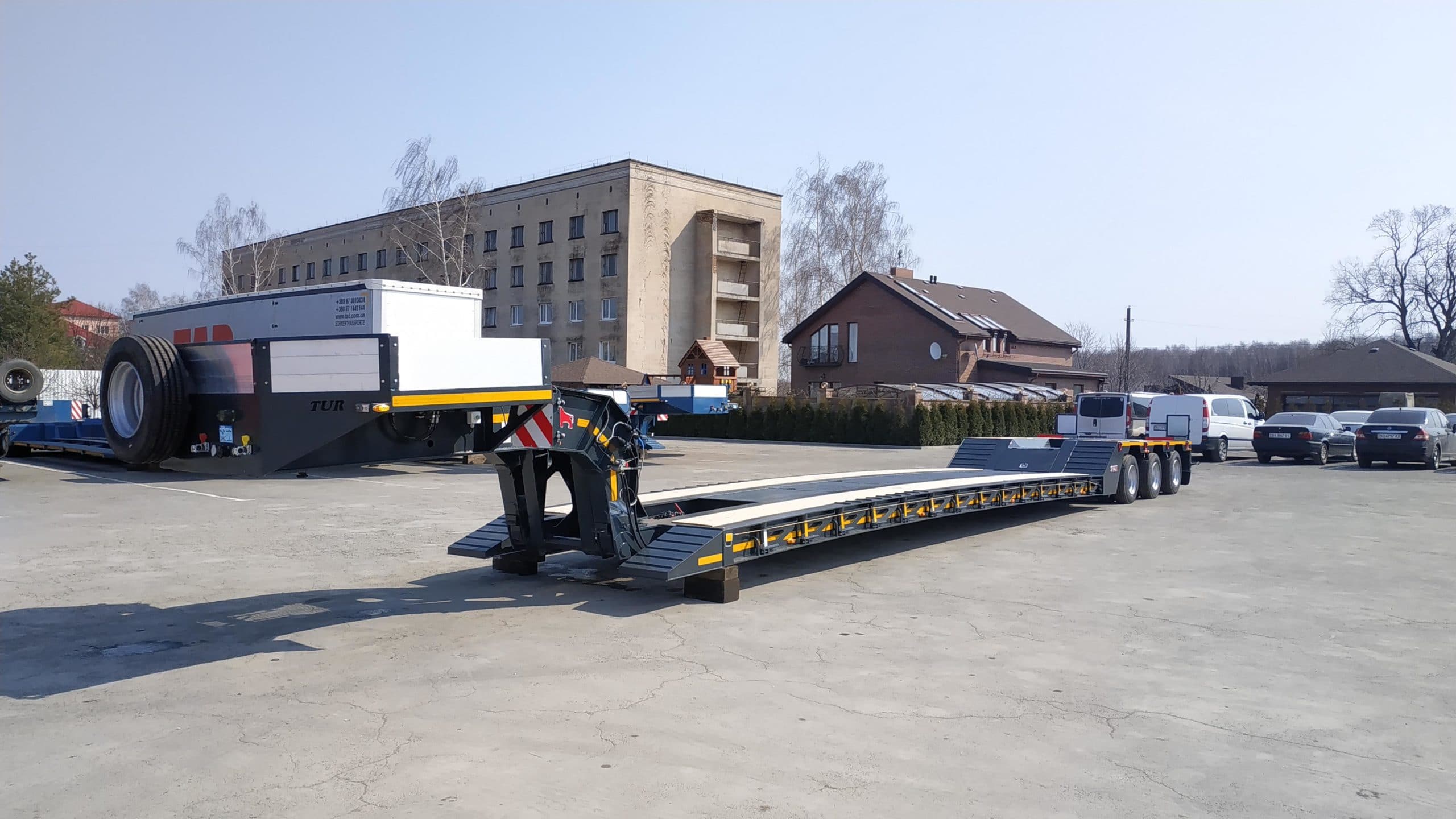

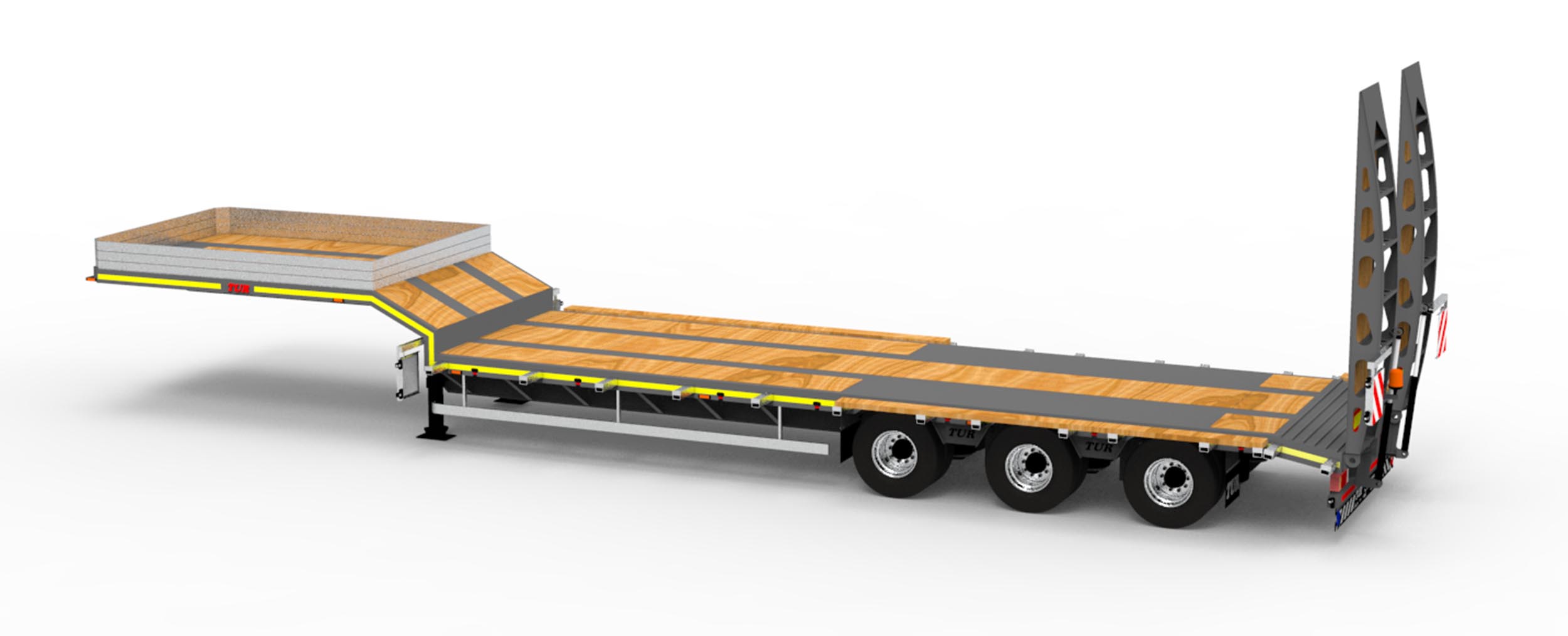

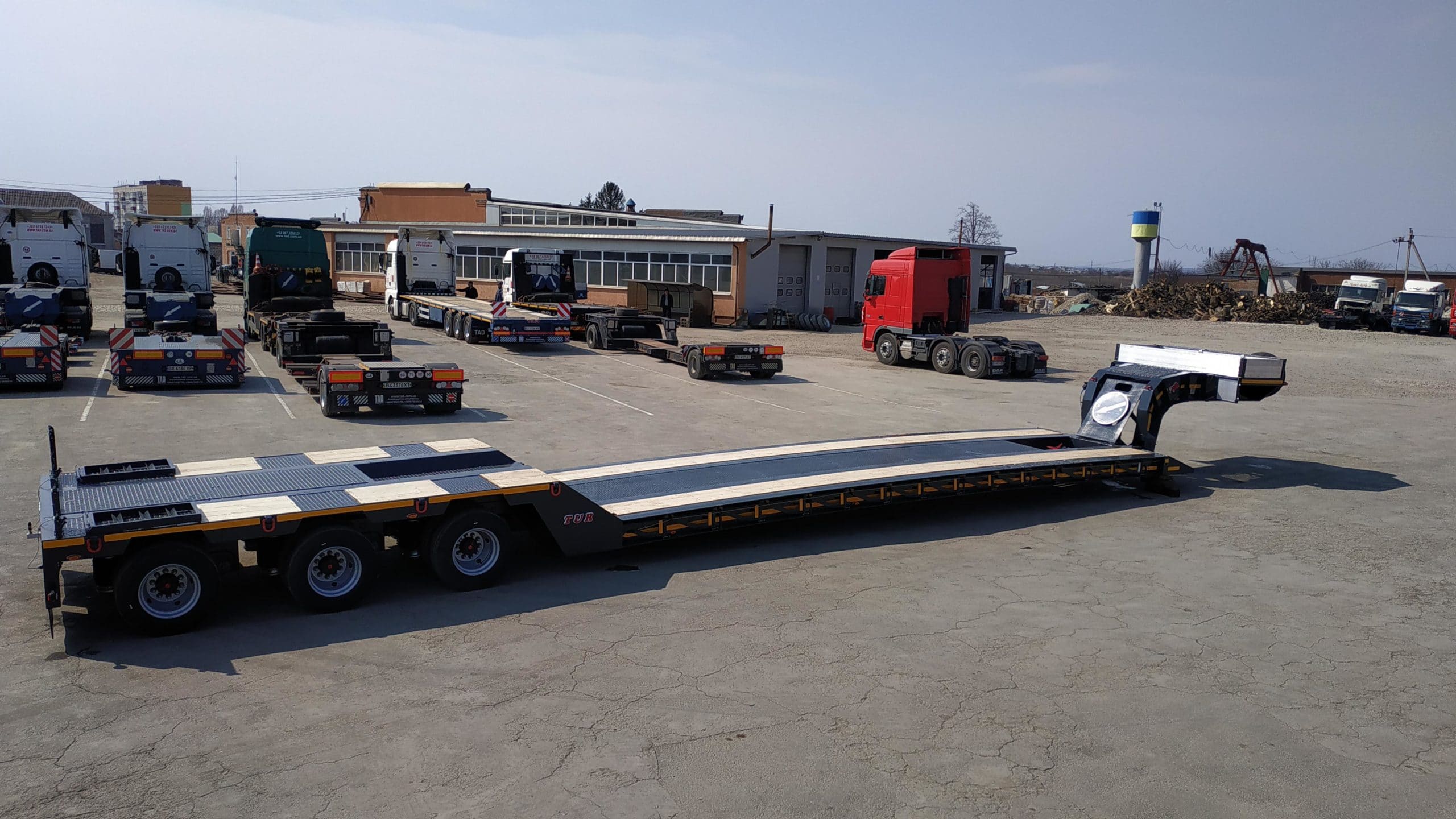

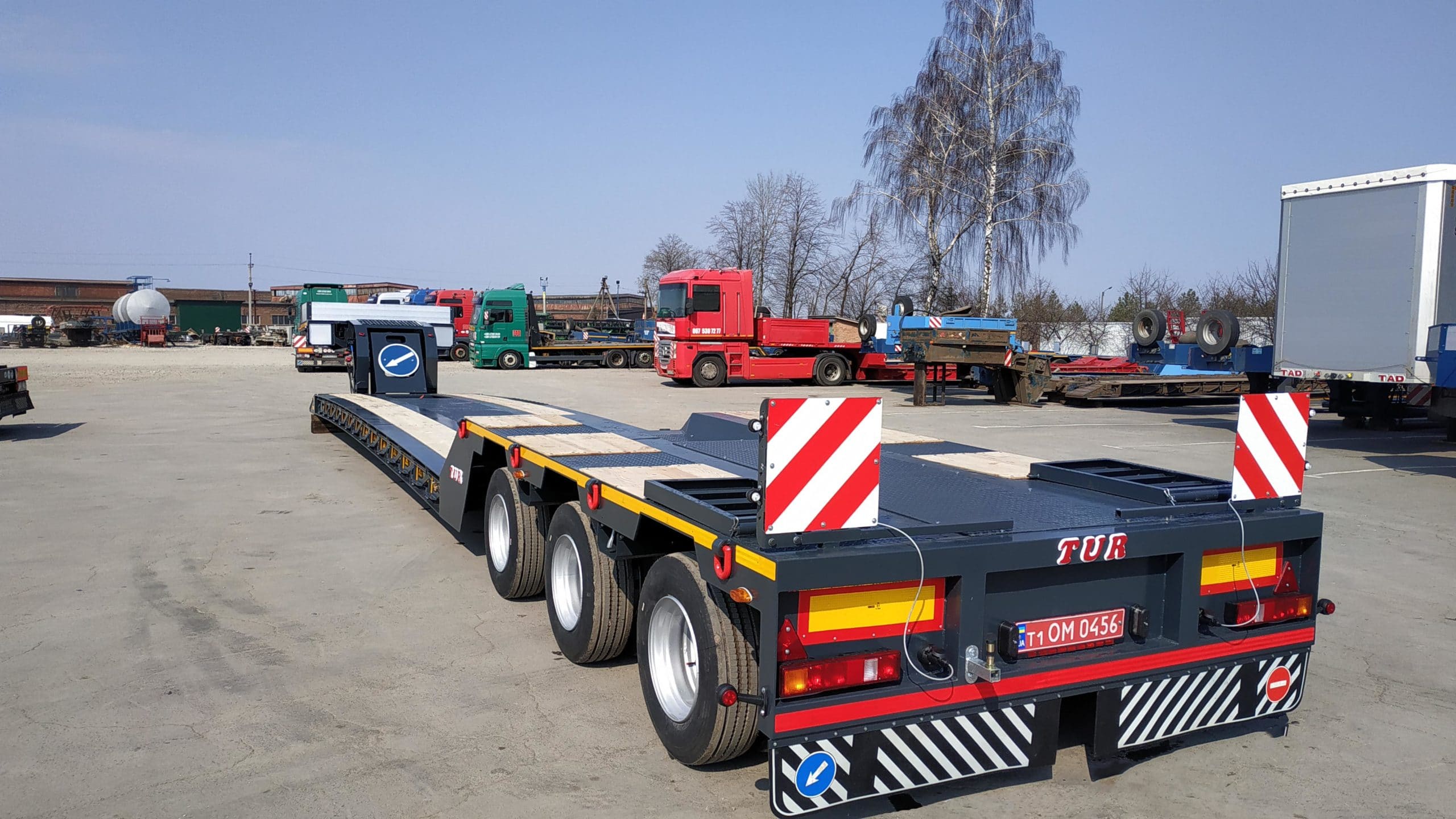

TUR 30-3, a good solution for professional oversized cargo carriers. Since the trawl has an optimal ratio of cost with a diverse range of goods that it can carry. This model can be equipped with three types of loading platforms “wide”, “universal”, “swallow” with a height of 150 mm, a width of up to 3500 mm, and a length of up to 16 m (telescope or insert) of a useful loading area. It is equipped with both conventional axles and force-driven (hydraulic) axles. The hydraulic or pneumatic detachable front gooseneck makes the trailer very convenient when loading and unloading self-propelled machinery.

The trailer is made of high-strength engineering steel of domestic or foreign production, with high parameters of elasticity and strength. Before painting, the metal is treated with abrasive materials by the method of bead blasting, after which several layers of high-quality soil and paint are applied. It is equipped with original components from leading European manufacturers such as WABCO, HALDEX, JOST. It is equipped with attachment points of the 8-10th strength class. The suspension consists of specially reinforced 9-12 ton axles.

The design has been tested by time and actual operation in the difficult road conditions of Ukraine. Also, the trailer meets all the necessary operating requirements in the EU, in particular the German § 70 (subject to the installation of forcibly controlled axles).

A 3 (three) year warranty is provided for the frame structure, for components in accordance with the specifications of manufacturers.

If you want to buy a trawl semi-trailer or special trailer for the transportation of oversized cargo, please contact, we will be happy to answer your questions !!!

TECHNICAL FEATURES:DESCRIPTION
Dimensions:

• total length 13850 mm
• length of the lowered platform of 9500 mm
• width 2550 mm / 3500 mm (expansion)
• coupling height 1250 mm

Weight:

• 12000 kg own weight
• 30000 kg load capacity

Axles and suspension:

• pneumatic, reinforced semi-spring
• Axis Mustafa Ceylan 9 t
• brake system of drum, disk type with ABS, manufacturer WABCO
• tires twin R17.5

Painting:

• preliminary metal cleaning by shot blasting, sandblasting. Two coats of high quality primer and two coats of damage resistant paint from European manufacturers

Metal:

• high quality, machine building, import manufacture (Germany), with high features of resilience and durability
• quality control of welds is carried out by magneto-powder method, specialist with appropriate certificate

Basic model is equipped with:

• 9 t axles stationary single 235/75 R17.5
• tires of the brand Aeolus
• wood platform flooring
• high strength engineering steel

Additional options, not included in standard complete equipment

• axis SAF
• axle lift
• front run, hydraulic disengagement method with a drive from the car
• metal platform flooring
• autonomous hydraulics from the electric pump or engine HONDA
• extended front gooseneck with sides and drawers

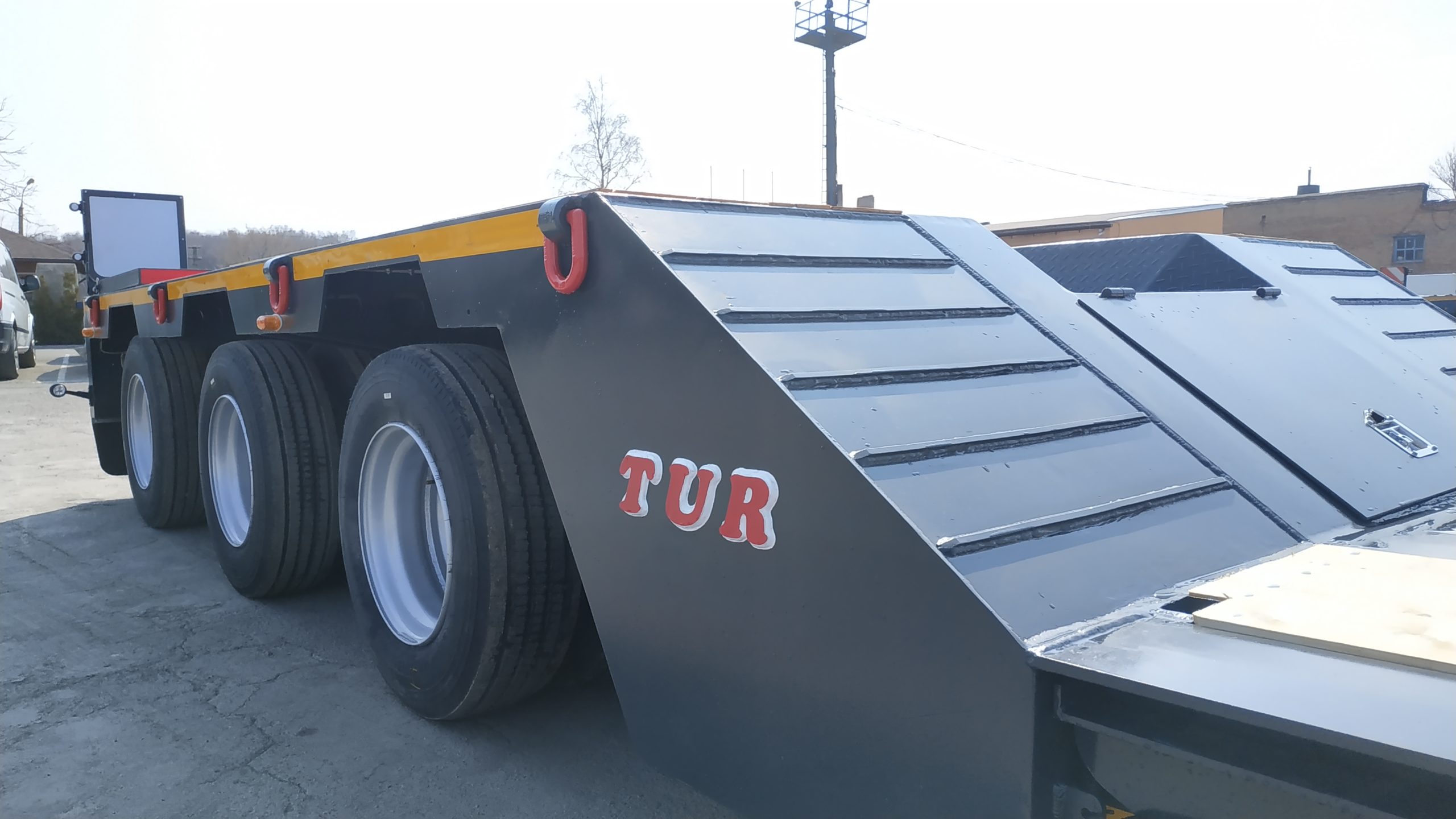

• extension of the rear balcony

Guarantee:

• a 3-year warranty or 150 tons of mileage is provided for the frame structure
• to other components according to obligations of manufacturers

Advantages of the trailer:

• durable time-tested design that withstands the terrible overload of bad Ukrainian roads
• high-quality original components from the best manufacturers
• well-designed trailer design, which allows you to easily transport most of the goods that the market offers
• simplicity, convenience and reliability in operation
• if necessary, service support and consultations of our specialists
• recommendation of the optimal configuration for YOU based on our extensive experience in transporting oversized goods
• Cost !!! note that it is much lower than the cost of similar European trailers. Despite the fact that our equipment is more adapted to domestic operating conditions.
• QUALITY !!! Our company is one of the largest carriers of oversized goods in Ukraine, and we first of all embody our practical experience in the technology of our production. Thanks to this, we never remain in place, but constantly improve, making the necessary changes in the design of trailers, as required by the market, and also improving their quality, practicality and reliability.

Address, we will be glad to answer your questions.

Compensation 25%

To receive compensation, you need to have a bank account with a statutory capital of more than 75% owned by the state of Ukraine

Make a trailer payment at the bank

Submit documents to the bank:

  • a copy of the payment order;
  • an act of reception and transmission of equipment;
  • certificate of state registration of equipment;
  • a certificate, confirmed by the State Fiscal Service, about the absence of arrears for more than six months to the state budget, the Pension Fund of Ukraine, funds of compulsory state social insurance;
  • an extract from the Unified State Register of Legal Entities, Individual Entrepreneurs and Public Associations, information that the enterprise is not in the liquidation phase, it has not initiated bankruptcy proceedings, has not been declared bankrupt;
  • consent to the disclosure by the Bank of the Ministry of Agrarian Policy of information on agricultural producers, which is a bank secret or contains personal data (in the form established by the Bank);

Compensation is returned after entering the data in the register of the Ministry of Agrarian Policy during the day.

Buying TAD low loaders is even more profitable!

Price TUR 30-3
Price:
63100 EUR with VAT
