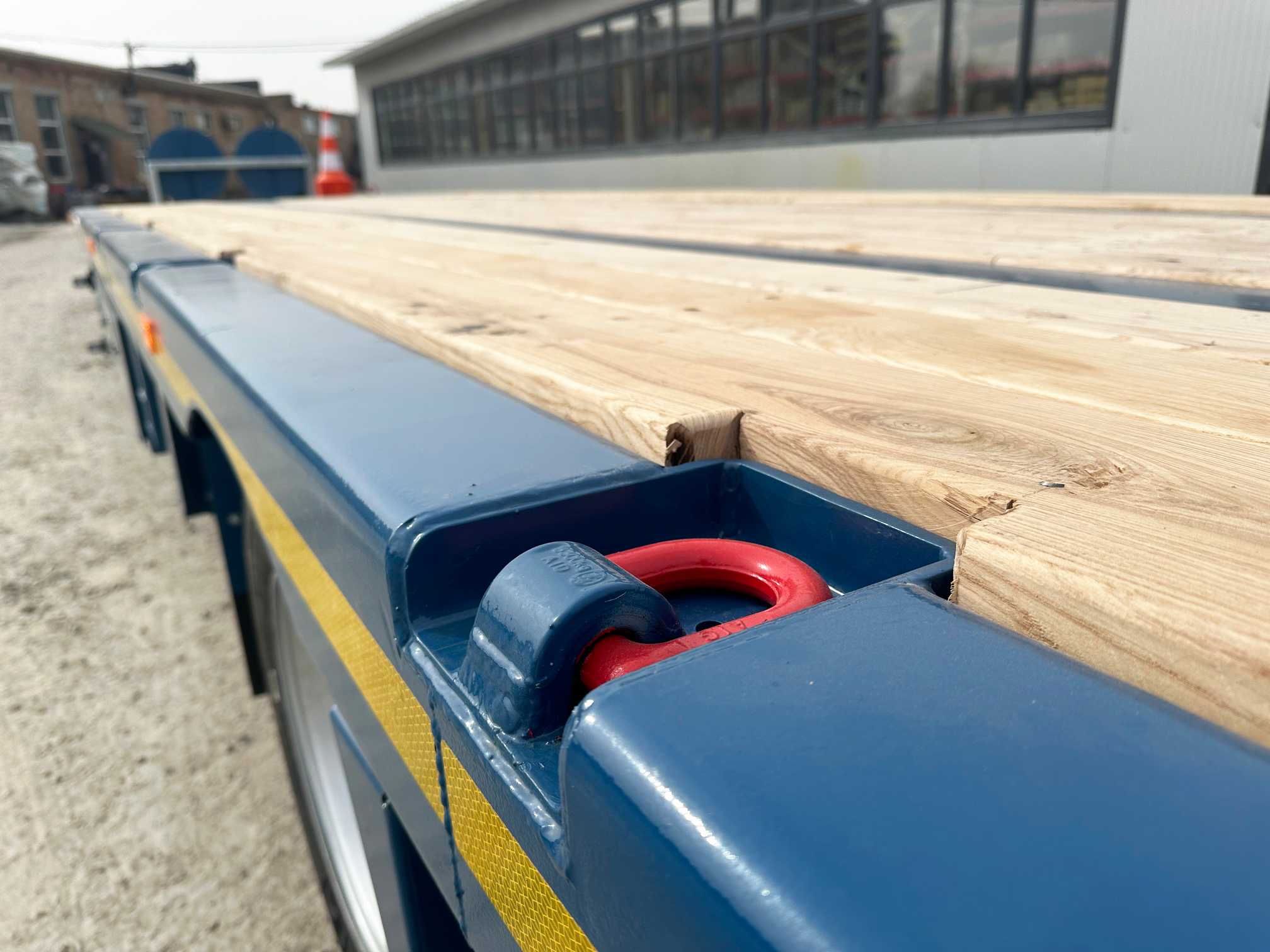

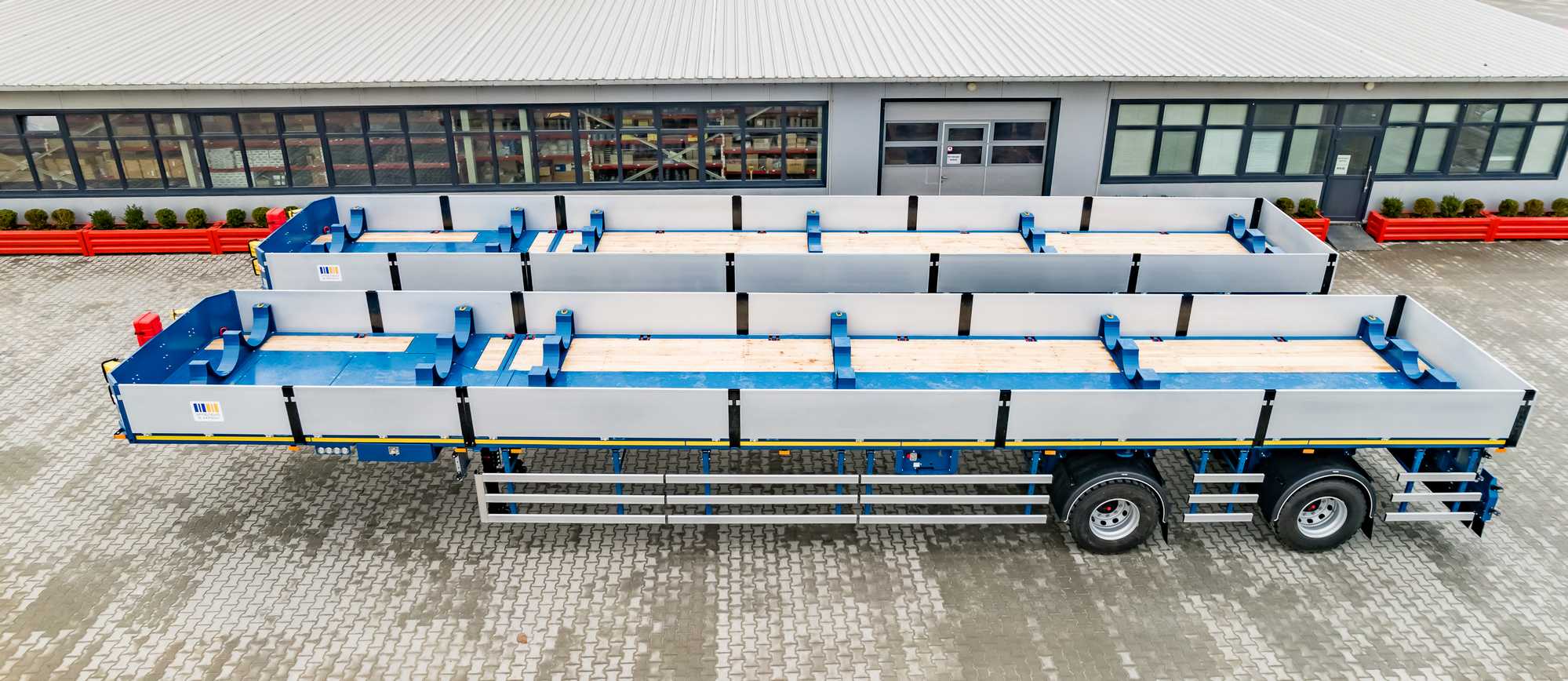

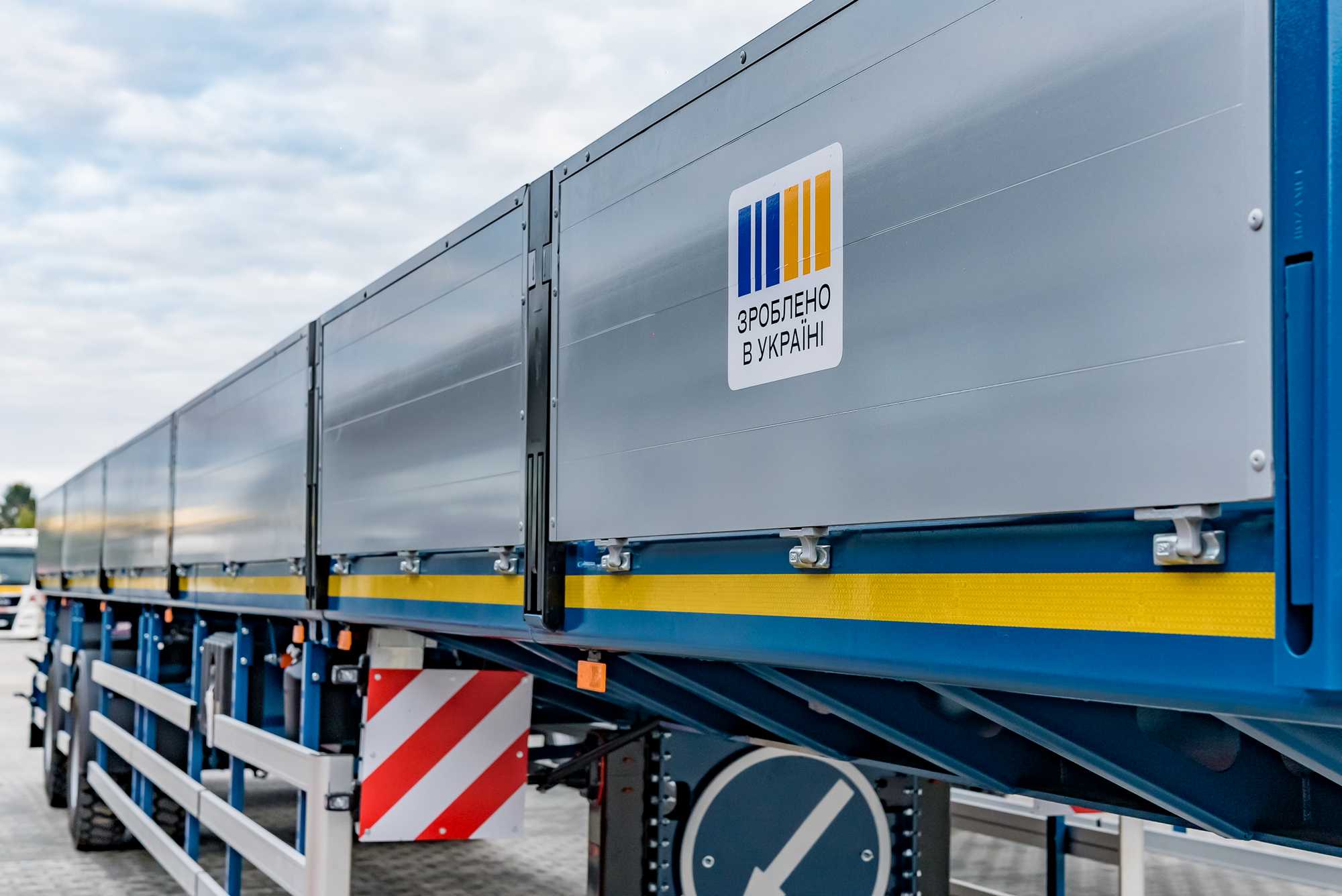

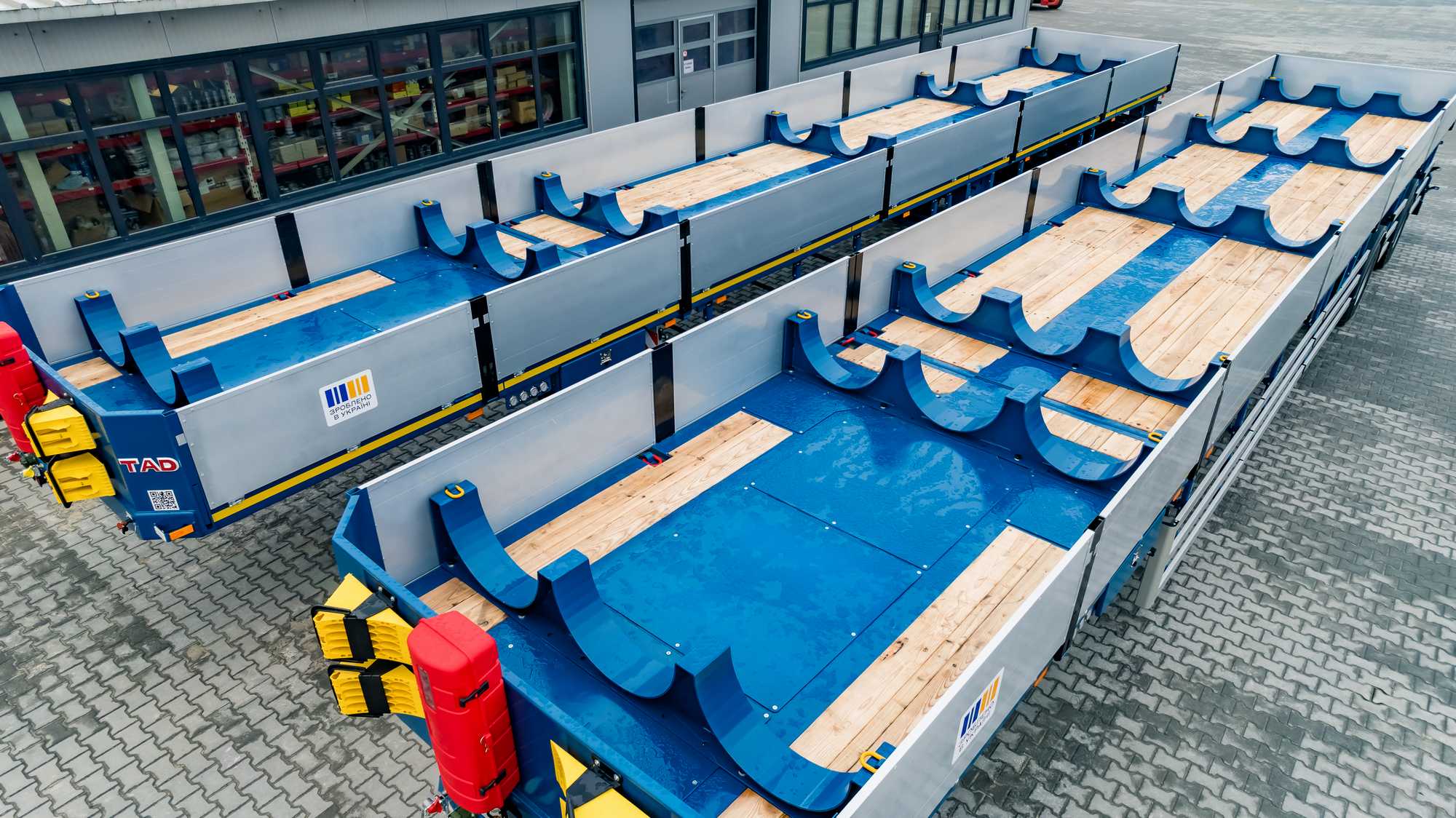

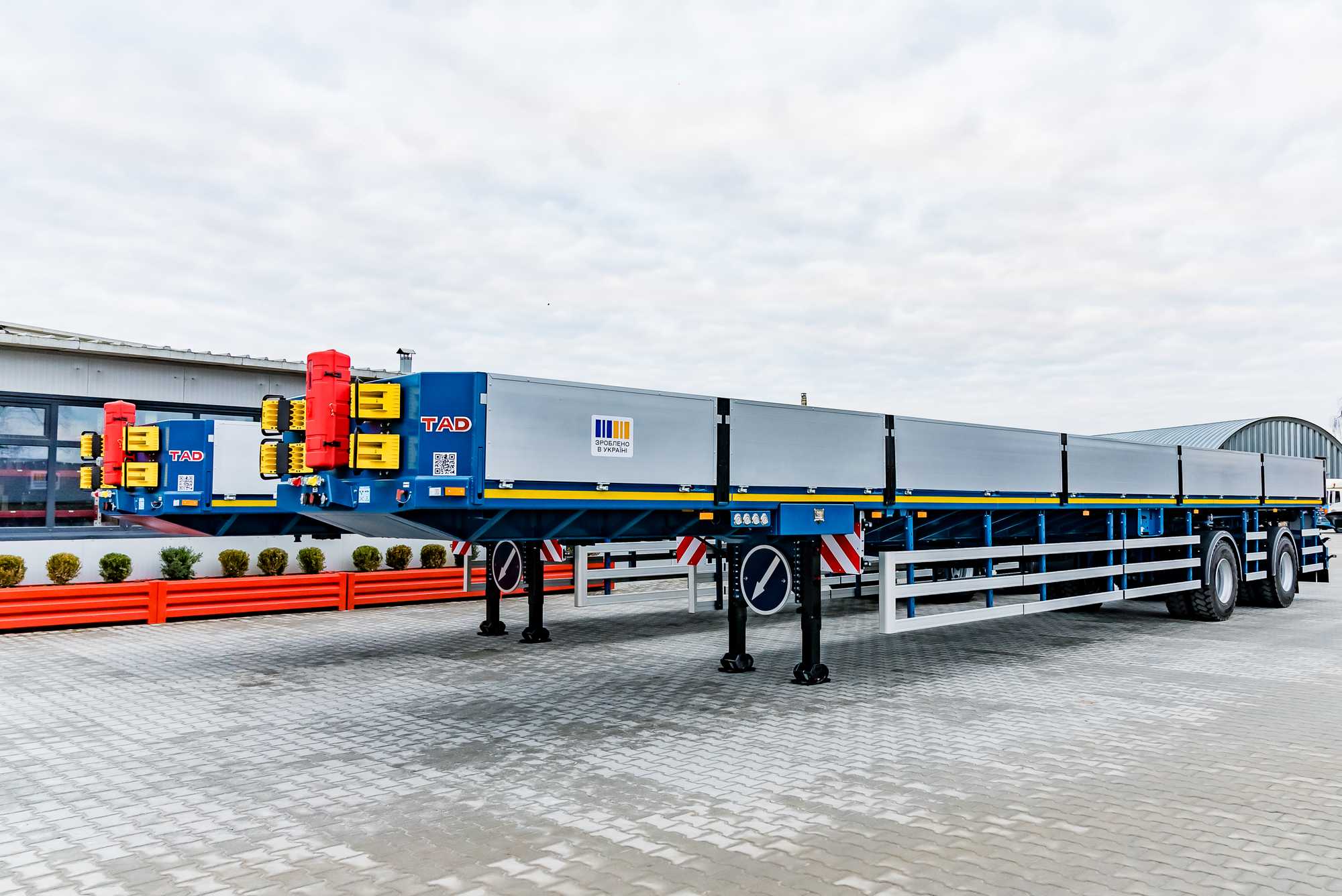

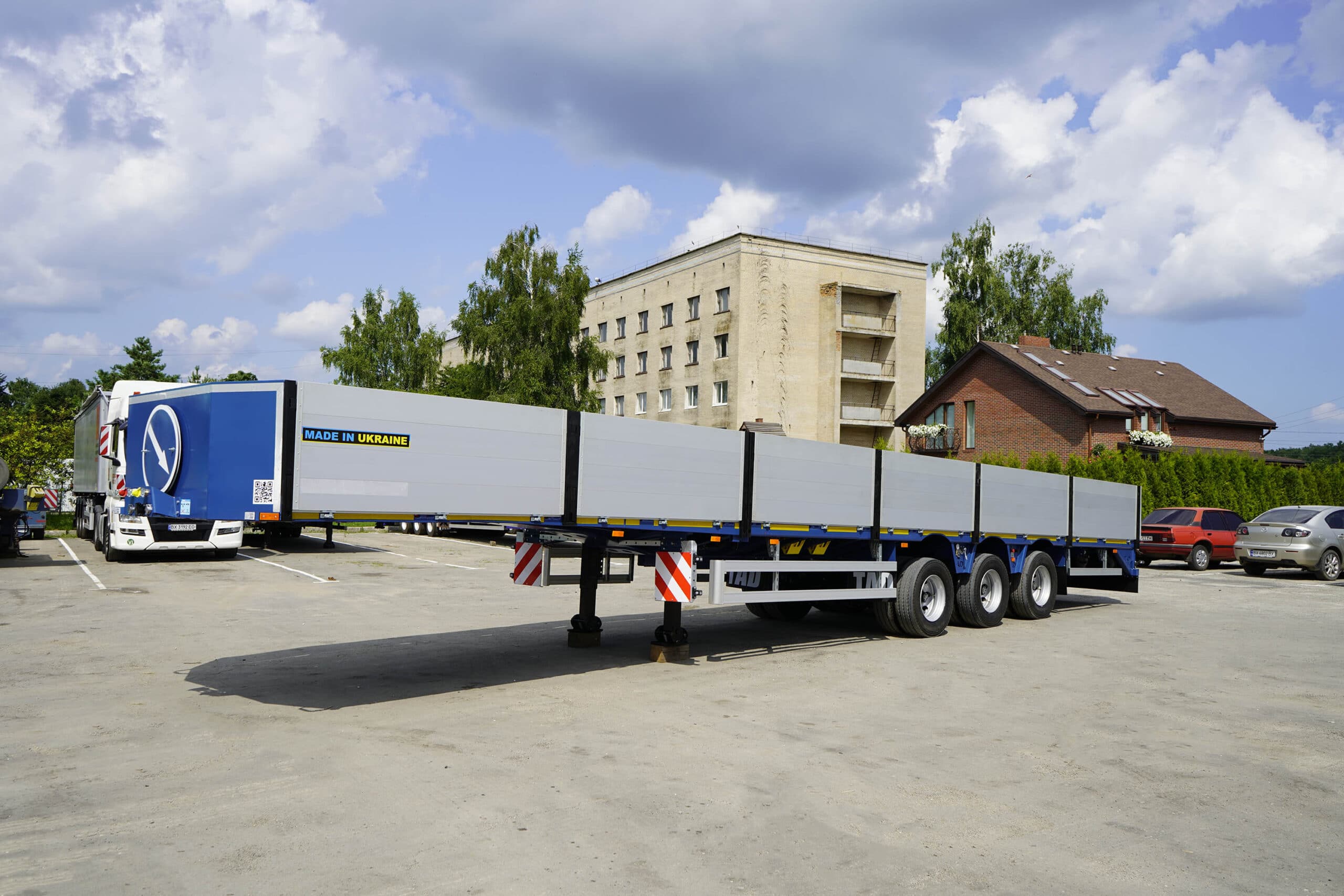

TAD.Mega 30-3 semi-trailer with flat load platform from 90 cm to 1 m, with the number of axles from 3 (three) to 4 (four). Types of installed axles depend on the specification, and can be usual, understeering and operated, with sensors of ABS, pressure in tires, etc. The trailer can also be equipped with a telescopic extension. Hydraulic, spring or mechanical ladders of various configurations can be used for arrival of equipment. The trailer is made of high-strength machine-building steel of domestic or import production, with high parameters of elasticity and durability. Before painting, the metal is treated with abrasive materials, sandblasting or shot blasting, and then applied several layers of quality primer and paint. Equipped with original components from leading European manufacturers such as WABCO, HALDEX, JOST. It is equipped with fastening points of the 8-10th class of durability. We are ready to consider and take into account your wishes regarding the manufacture of a trailer with the necessary technical features for you.

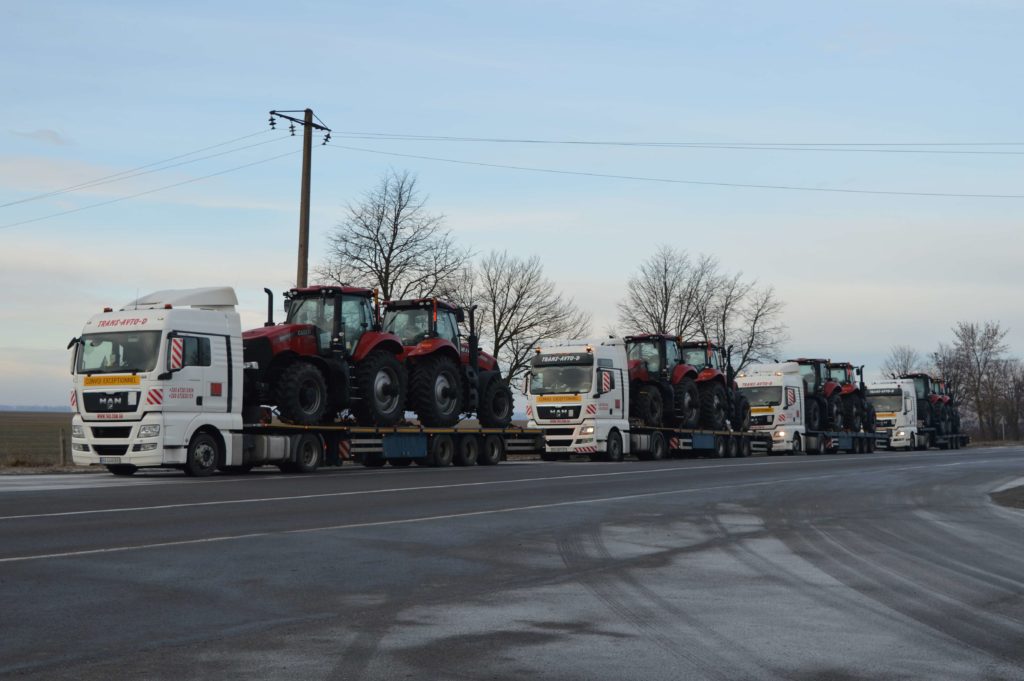

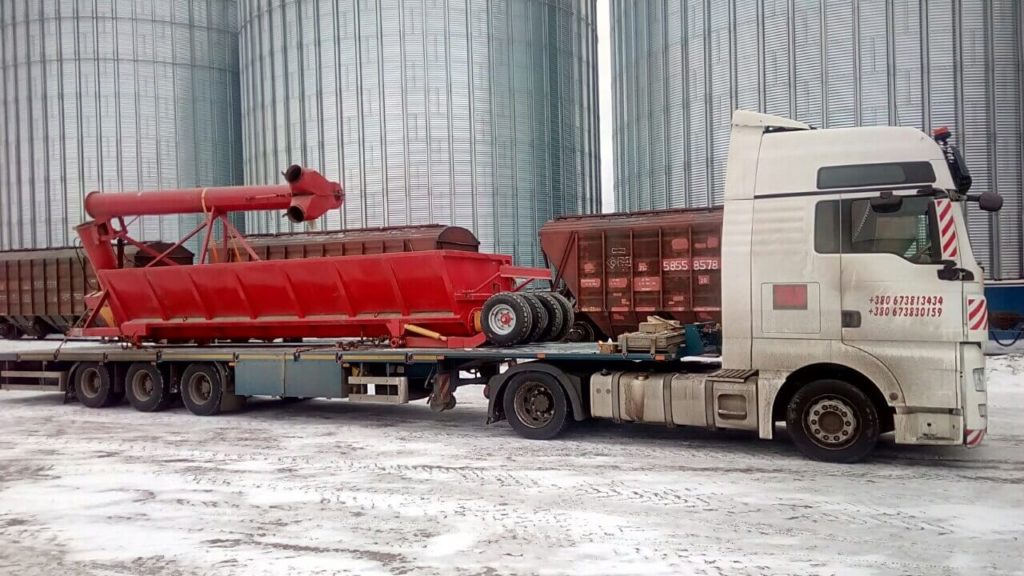

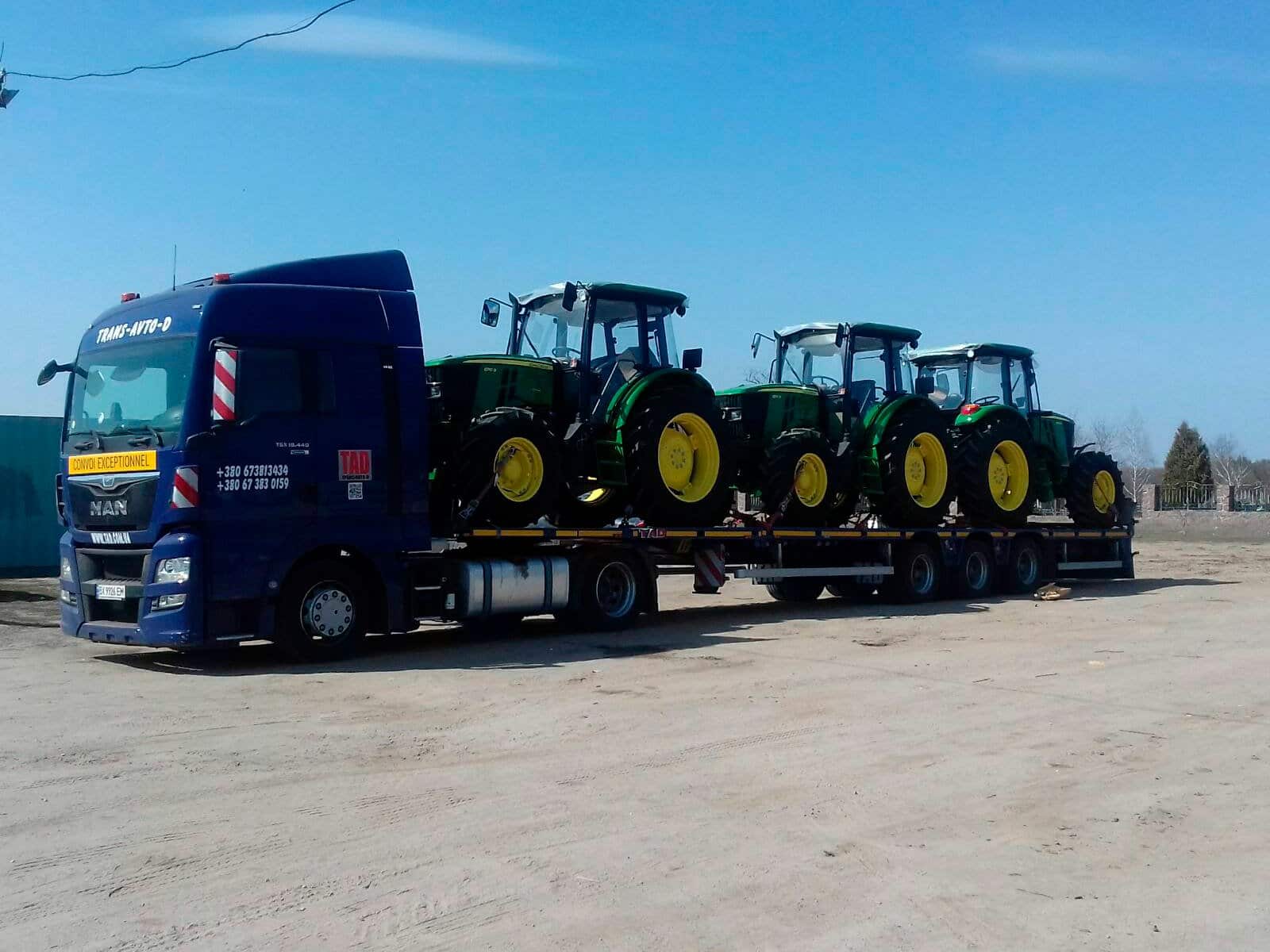

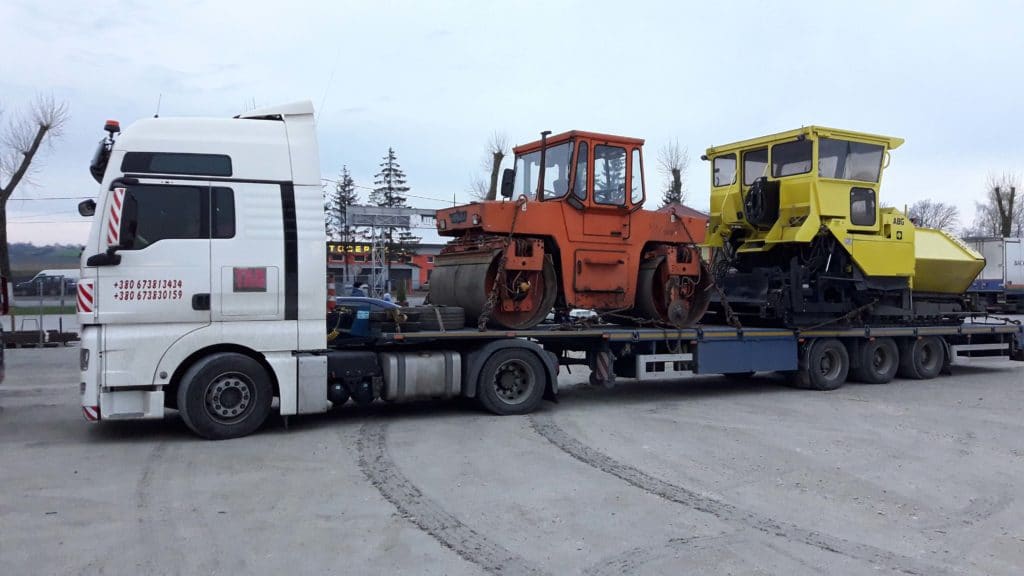

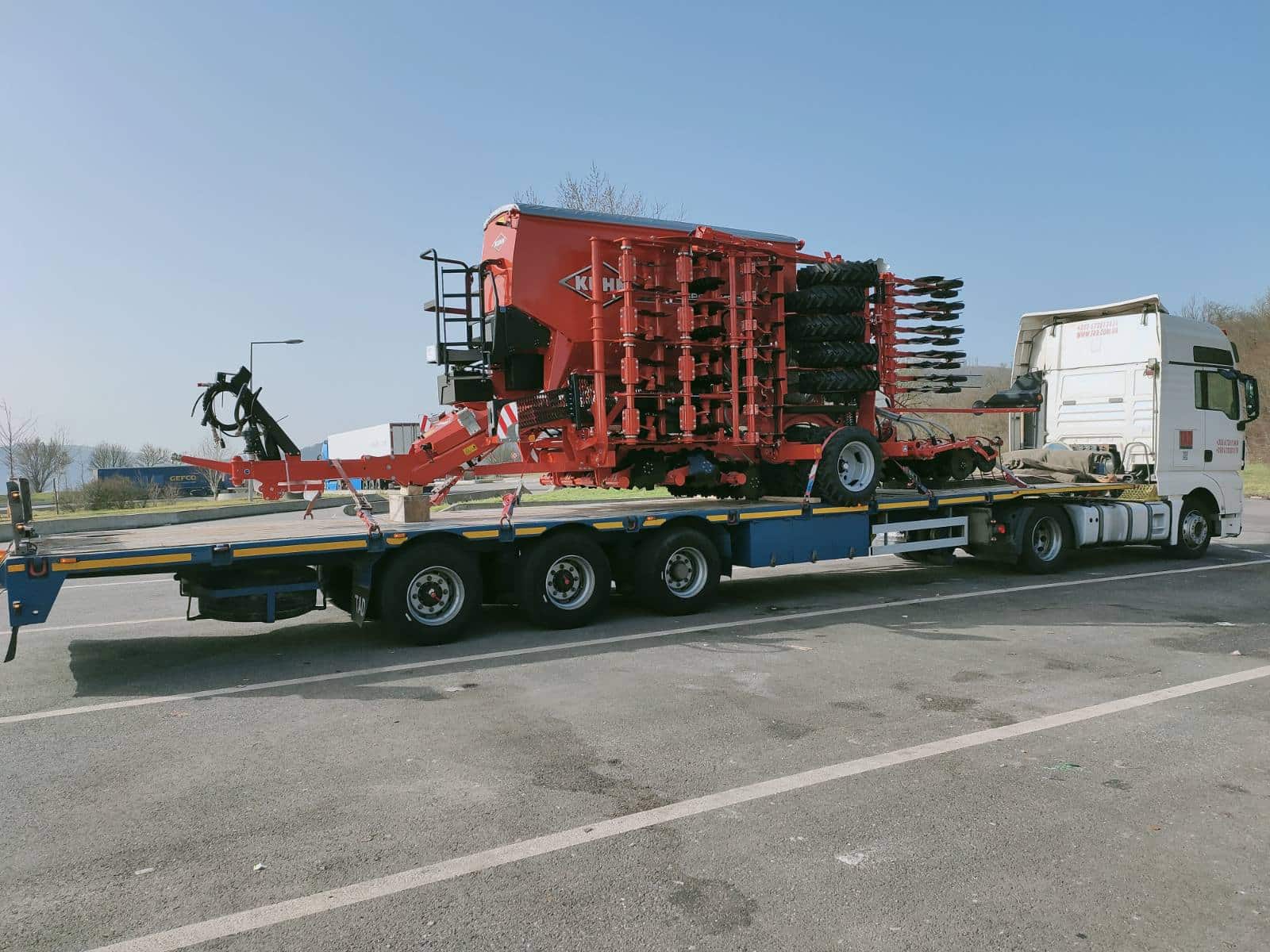

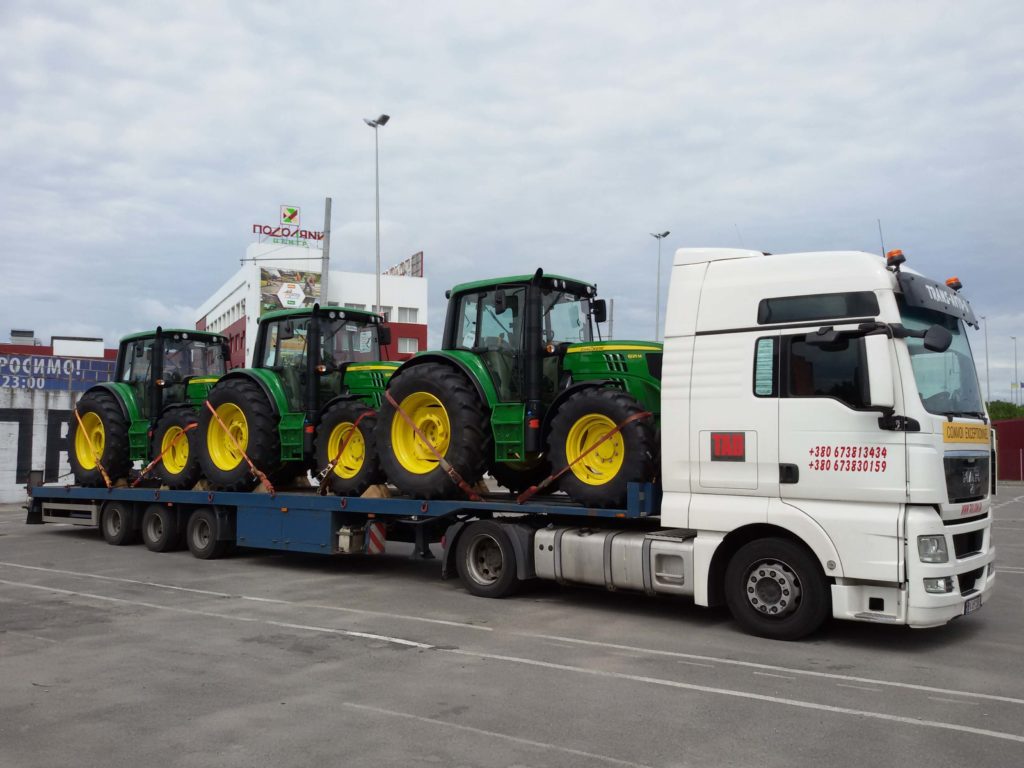

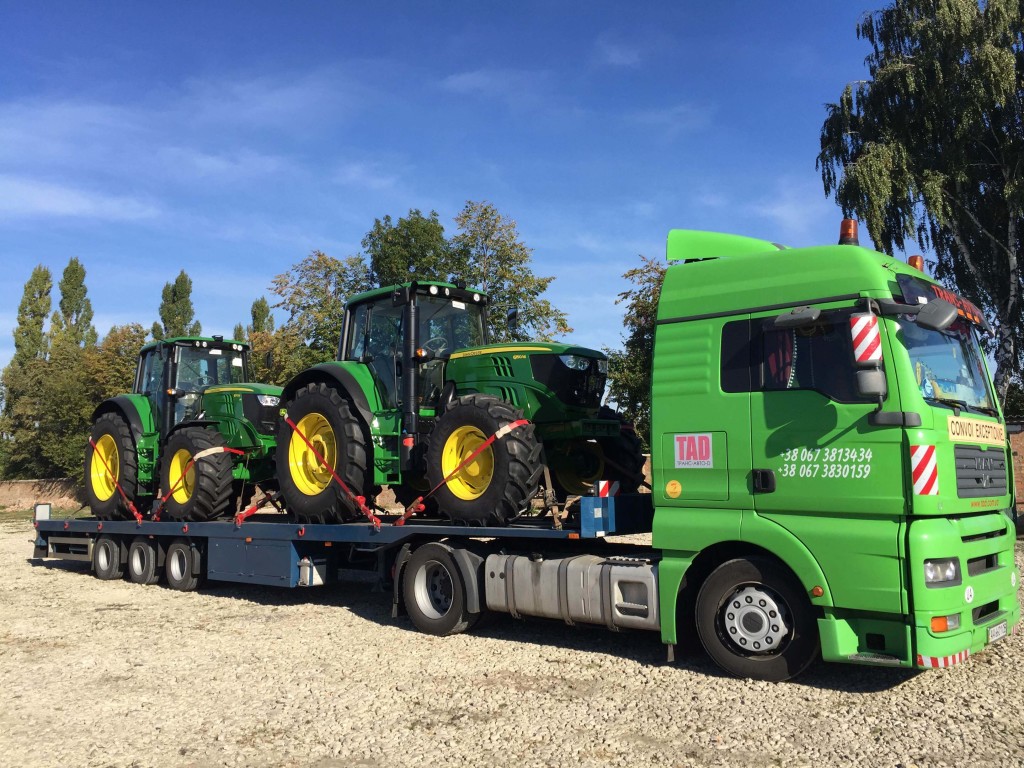

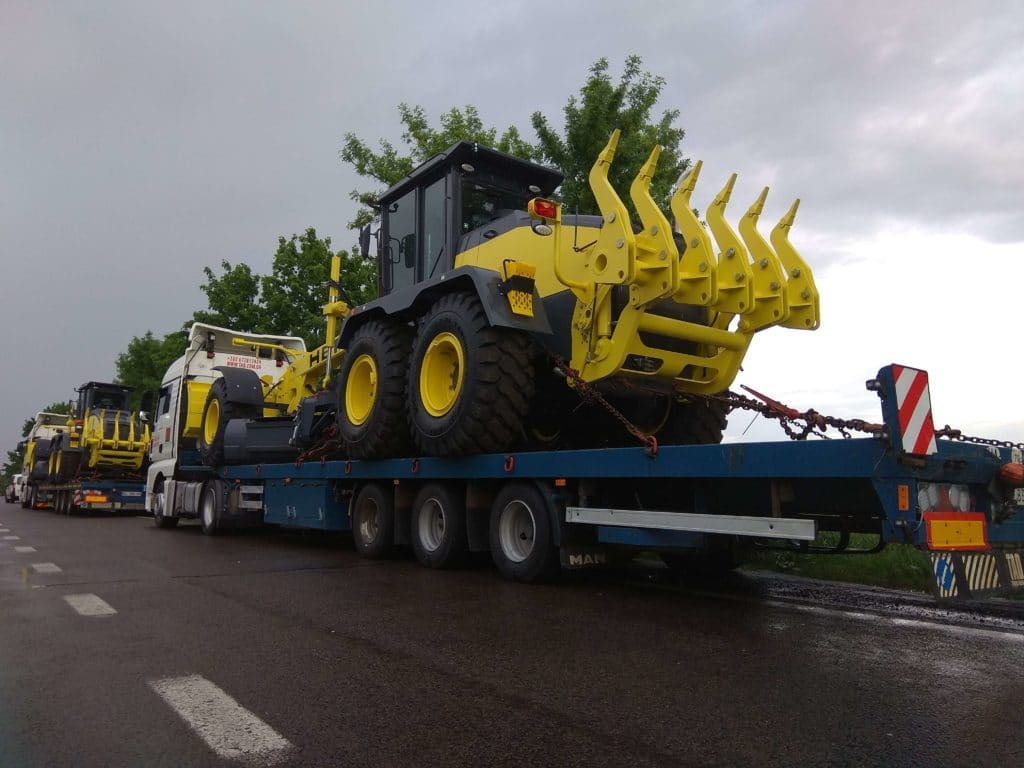

This type of trailer has a large load capacity at a relatively low weight, and is mainly used for the transportation of industrial goods and agricultural machinery. The large number of axles and low curb weight contribute to moderate pressure on the road surface, which reduces the cost of permits for carriers when traveling on highways.

If you want to buy the special trailer for transportation of oversized freights, address, We will be glad to answer your questions !!!

SpecificationsDescription
Dimensions:

• total length 13600 (5500) mm (telescopic extension)
• width 2550 mm / 3200 mm (expansion)
• height 900 mm

Weight:

• 9500 kg net weight
• 30,000 kg load capacity

Axles and suspension:

• pneumatic, semi-spring reinforced
• axle number of 3 pieces 9t R19.5 with double half-spring and drum brakes, the third axis is inertially rotary

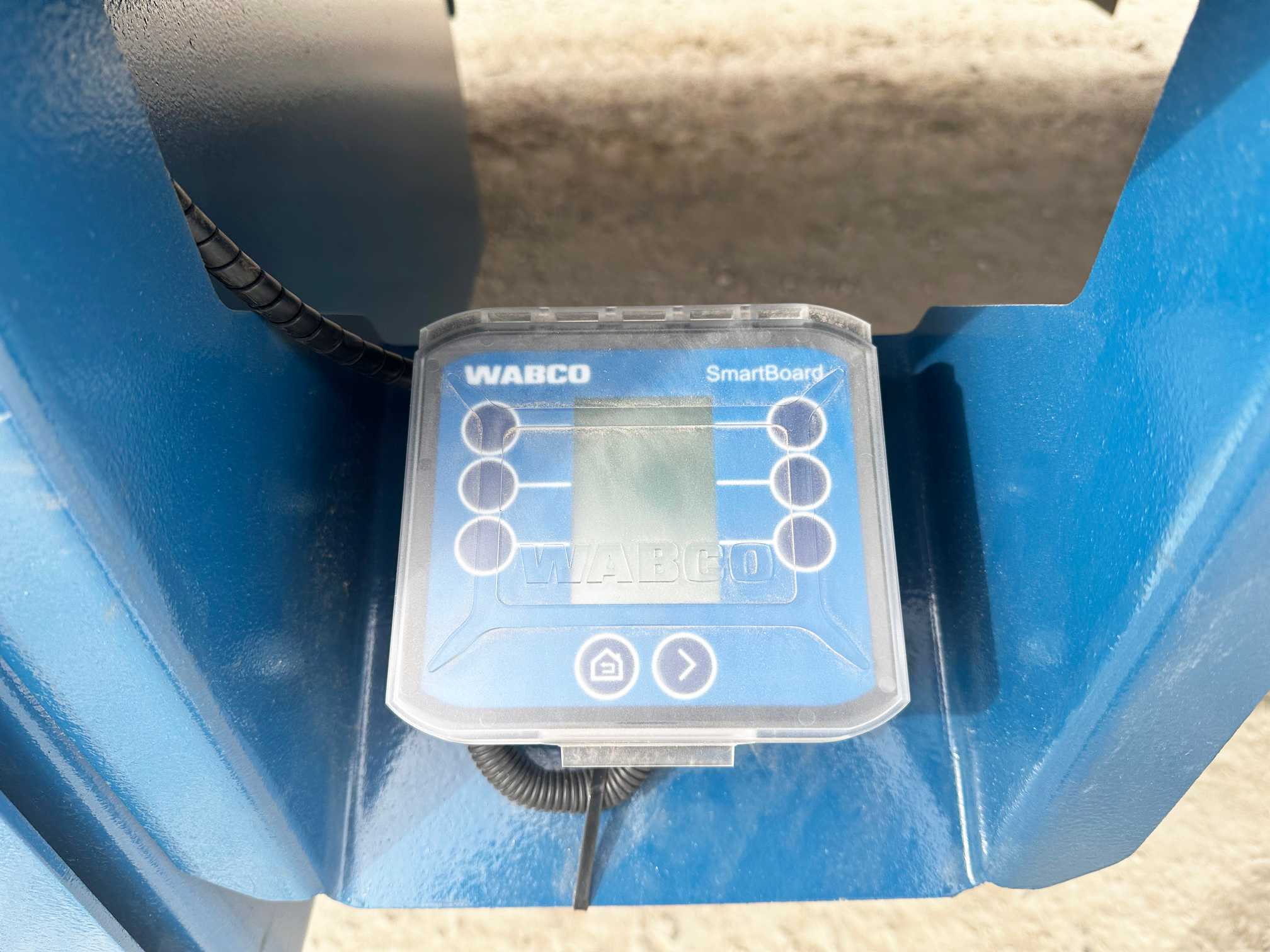

• drum brake system, disc type with ABS, manufacturer WABCO
• paired tires R19.5

Dyeing:

• preliminary cleaning of metal by shot blasting, sandblasting. Two layers of high-quality soil and two layers of damage-resistant paint from European manufacturers

Metal:

• high-quality machine-building steel S690, S350 of domestic or import production, with high parameters of elasticity and durability
• quality control of welds is carried out by the magnetic powder method, a specialist with the appropriate certificate

Guarantee:

• the frame construction is guaranteed for 3 years or 150 t km
• for other components in accordance with the obligations of the manufacturers

ADVANTAGES OF OUR TRAILER

• durable, time-tested construction that can withstand the terrible congestion of bad Ukrainian roads
• high-quality original components from the best manufacturers
• well-designed trailer design that allows you to easily transport most of the goods offered by the market
• simplicity, convenience and reliability in operation
• if necessary, service support and advice from our specialists
• recommendation of the most optimal equipment for YOU based on our extensive experience in oversized transportation
• possibility of transportation of combines with reapers of 10 m.
• COST !!! note that it is much lower than the cost of similar European trailers. Although our equipment is more adapted to domestic operating conditions.
• QUALITY !!! our company is one of the largest carriers of oversize in Ukraine and all our practical experience we first of all embody in equipment of our production. As a result, we never stay put, but are constantly improving, making the necessary changes to the design of trailers, as required by the market, as well as improving their quality, practicality and reliability.

Contact us, we will be happy to answer your questions.

Click on the image to rotate the model

Compensation 25%

To receive compensation, you need to have a bank account with a statutory capital of more than 75% owned by the state of Ukraine

Make a trailer payment at the bank

Submit documents to the bank:

  • a copy of the payment order;
  • an act of reception and transmission of equipment;
  • certificate of state registration of equipment;
  • a certificate, confirmed by the State Fiscal Service, about the absence of arrears for more than six months to the state budget, the Pension Fund of Ukraine, funds of compulsory state social insurance;
  • an extract from the Unified State Register of Legal Entities, Individual Entrepreneurs and Public Associations, information that the enterprise is not in the liquidation phase, it has not initiated bankruptcy proceedings, has not been declared bankrupt;
  • consent to the disclosure by the Bank of the Ministry of Agrarian Policy of information on agricultural producers, which is a bank secret or contains personal data (in the form established by the Bank);

Compensation is returned after entering the data in the register of the Ministry of Agrarian Policy during the day.

Buying TAD low loaders is even more profitable!

TAD.Mega 30-3 Price
Price:
51 450 EURO with VAT

(Cost is recommended and may vary)
