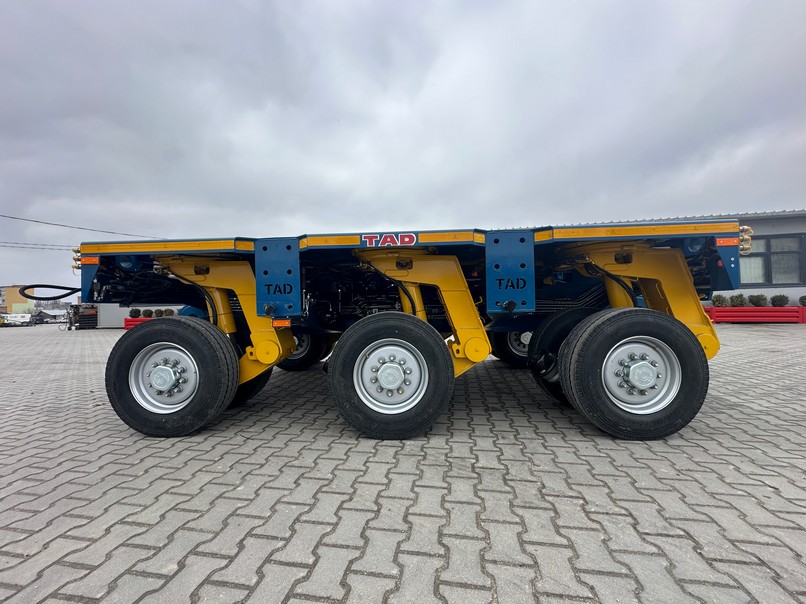

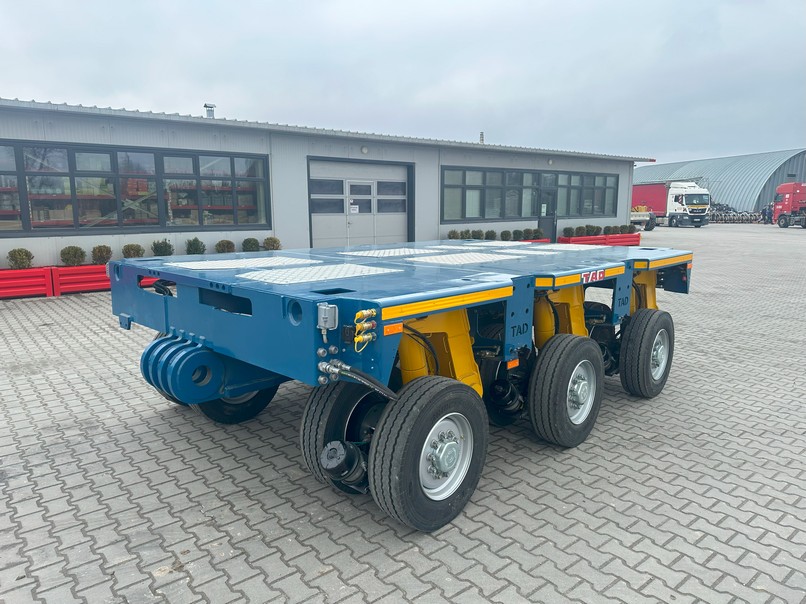

Semi-trailer TAD MODULMOVER

High-tech specialized semi-trailer TAD Modul Mover, designed for transporting a wide range of oversized and heavy-duty cargo, including construction, agricultural, and road machinery.

Key advantage: the unique modular design allows flexible combinations of various load platforms and wheelbases, providing an optimal solution for transporting cargo of any complexity and dimensions.

General Technical Specifications:

• Axles: GIGANT or BPW pendulum axles with steering wheels, load capacity up to 14 tons per axle line, drum brakes
• Suspension: TAD hydraulic pendulum suspension
• Hydraulic axle steering system by TAD with remote control unit
• Pneumatic system: WABCO with ABS
• Construction: Robust welded frame made of high-quality S355 and S690QL steel
• Coating: Multi-layer corrosion protection, including shot blasting, two layers of zinc-rich primer, and two layers of wear-resistant polyurethane paint
• Reflective strip along the entire length and rear of the platform significantly improves road visibility

Gooseneck:

• Universal gooseneck with two hydraulic cylinders for convenient lifting/lowering and load adjustment on the truck’s fifth wheel
• Maximum fifth wheel load: 28,000 kg
• Safe turning radius: 2800 mm
• Kingpin size: 3.5 inches
• Centralized lubrication system
• Additional removable aluminum sideboards

Modular Platform (5 lines × 2 axles):

• Payload capacity: 54,800 kg
• Width: 2990 mm
• Platform length: 7470 mm
• Platform height: *1200 mm
• Axle spacing: 1500 mm
• Tires: 285/70 R19.5, 235/75 R17.5, or 245/70 R17.5
• Centralized lubrication system
• TAD forced hydraulic steering system with remote control

Modular Platform (3 lines × 2 axles):

• Payload capacity: 32,400 kg
• Width: 2990 mm
• Platform length: 4860 mm
• Platform height: *1050 mm
• Axle spacing: 1500 mm
• Tires: 285/70 R19.5, 235/75 R17.5, or 245/70 R17.5
• Centralized lubrication system
• TAD forced hydraulic steering system with remote control

TAD Modul Mover is an investment in the efficiency and versatility of your fleet!
Contact us for detailed information and a personalized offer.

Lending programs in support of the agro-industry with which we work

Compensation 25%

To receive compensation, you need to have a bank account with a statutory capital of more than 75% owned by the state of Ukraine

Make a trailer payment at the bank

Submit documents to the bank:

• a copy of the payment order;
• an act of reception and transmission of equipment;
• certificate of state registration of equipment;
• a certificate, confirmed by the State Fiscal Service, about the absence of arrears for more than six months to the state budget, the Pension Fund of Ukraine, funds of compulsory state social insurance;
• an extract from the Unified State Register of Legal Entities, Individual Entrepreneurs and Public Associations, information that the enterprise is not in the liquidation phase, it has not initiated bankruptcy proceedings, has not been declared bankrupt;
• consent to the disclosure by the Bank of the Ministry of Agrarian Policy of information on agricultural producers, which is a bank secret or contains personal data (in the form established by the Bank);

Compensation is returned after entering the data in the register of the Ministry of Agrarian Policy during the day.

Buying TAD low loaders is even more profitable!
